Measurement with Cd source [message #2078]

Fri, 22 July 2005 11:53

Rainer Schicker
Messages: 9
Registered: August 2004
Location: Phys Inst Heidelberg

occasional visitor

From: *physi.uni-heidelberg.de

As discussed at Heidelberg we started making some chamber
measurements with a 109Cd source as alternative to the 55Fe
source and the X-ray tube. Nominal activity of the Cd source
is 740MBq. The 1-d scan does not show the radiator bars
as expected due to the higher photon energies of the Cd source

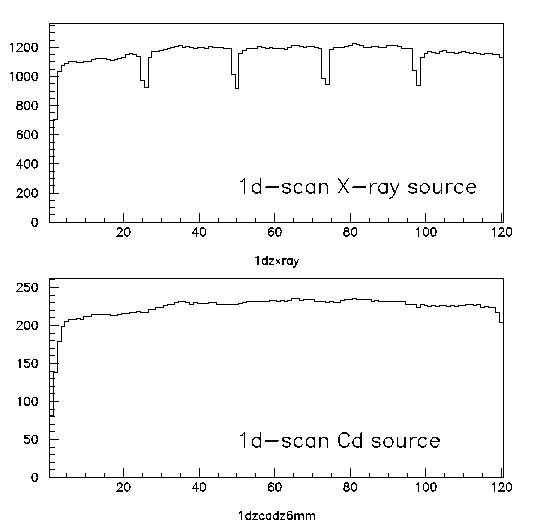

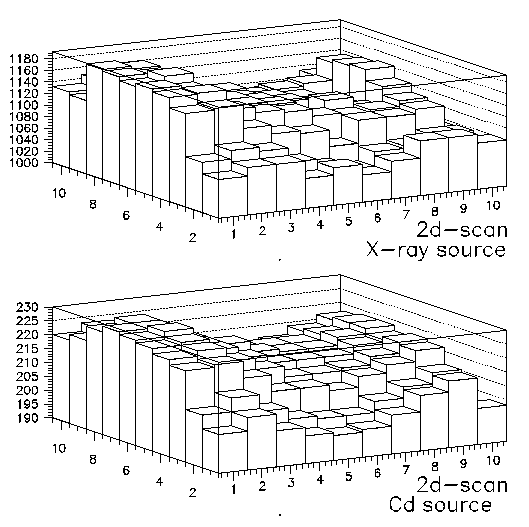

of about 12 and 22 keV, respectively. I include a 1-d and a 2-d
scan of both the X-ray tube and the Cd source for comparison.

index.php?t=getfile&id=1074&private=0
