Re: FRS Calibration Issue [message #17346 is a reply to message #17342] Wed, 24 September 2014 12:05 Go to previous messageGo to previous message
SMilne is currently offline  SMilne
Messages: 30
Registered: July 2014
Location: York
continuous participant
From: *york.ac.uk
Hi Liliana!

Yeah, I double checked and do indeed get the same numbers.

I assume you meant the number of counts in both 58Ni blobs either using TPCs or Scintillator positions, I get:
TPC: 1.612E4
Scintillator: 3.247E4

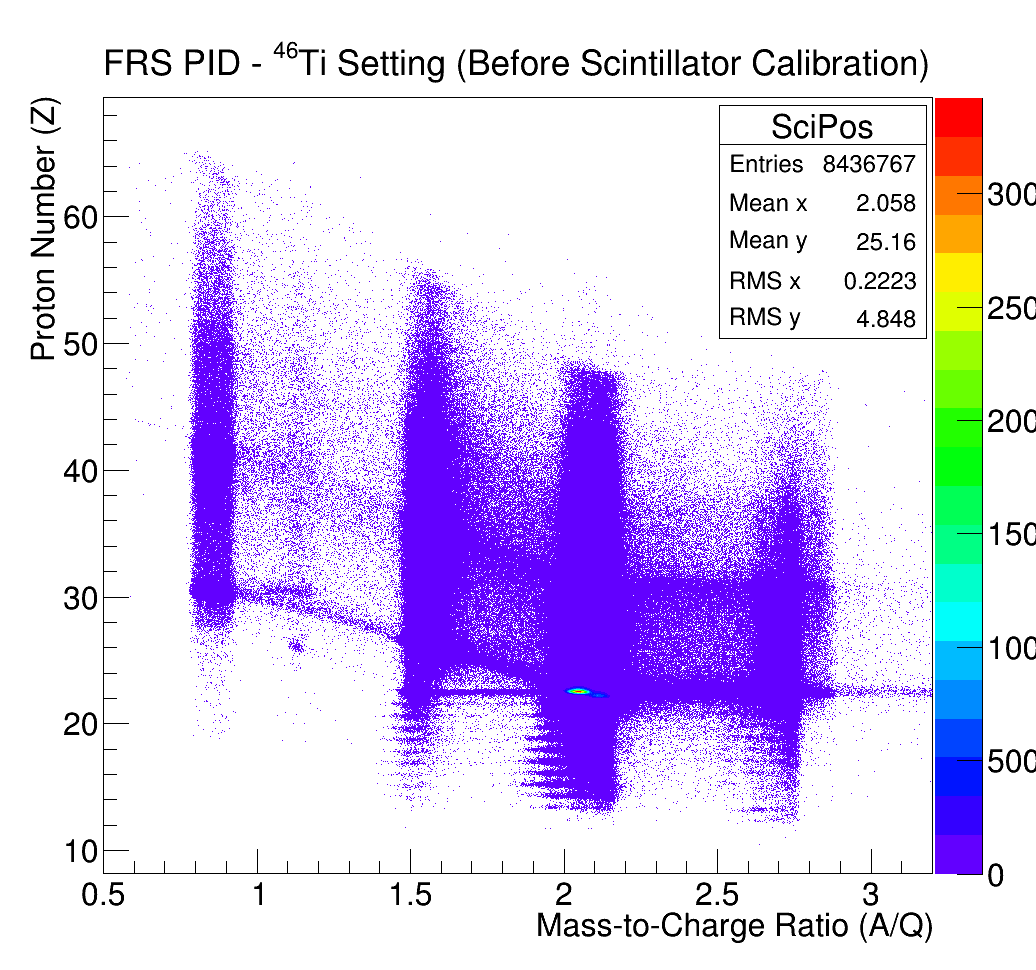

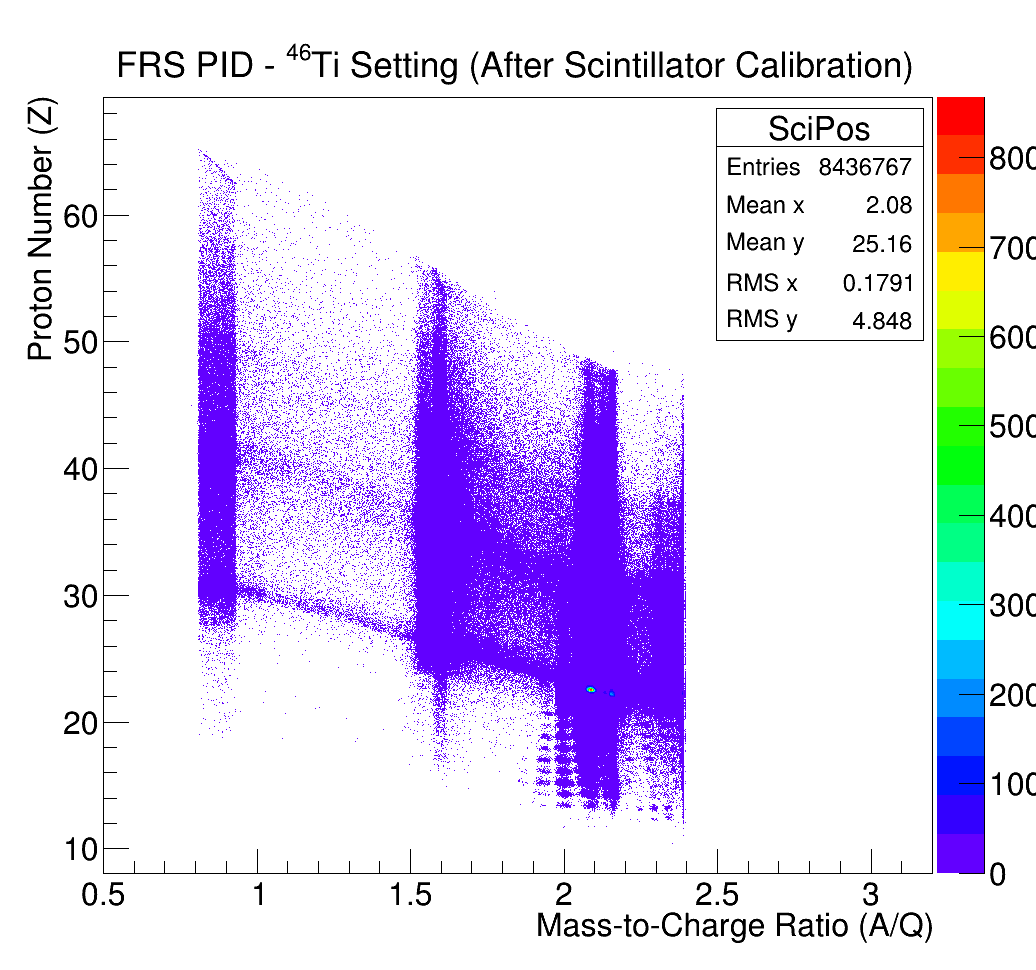

Obviously I still need to make a better job of these calibrations, judging from my 46Ti Frs Ids below, before the calibration and after the calibration. Also I forgot to mention, but althouh my Z is perfect for the Ni calibration runs, it comes out as ~22.5 for the 46Ti, perhaps this is not so unusual, the Kr calibrations resulted in the same.

index.php?t=getfile&id=8102&private=0

index.php?t=getfile&id=8103&private=0

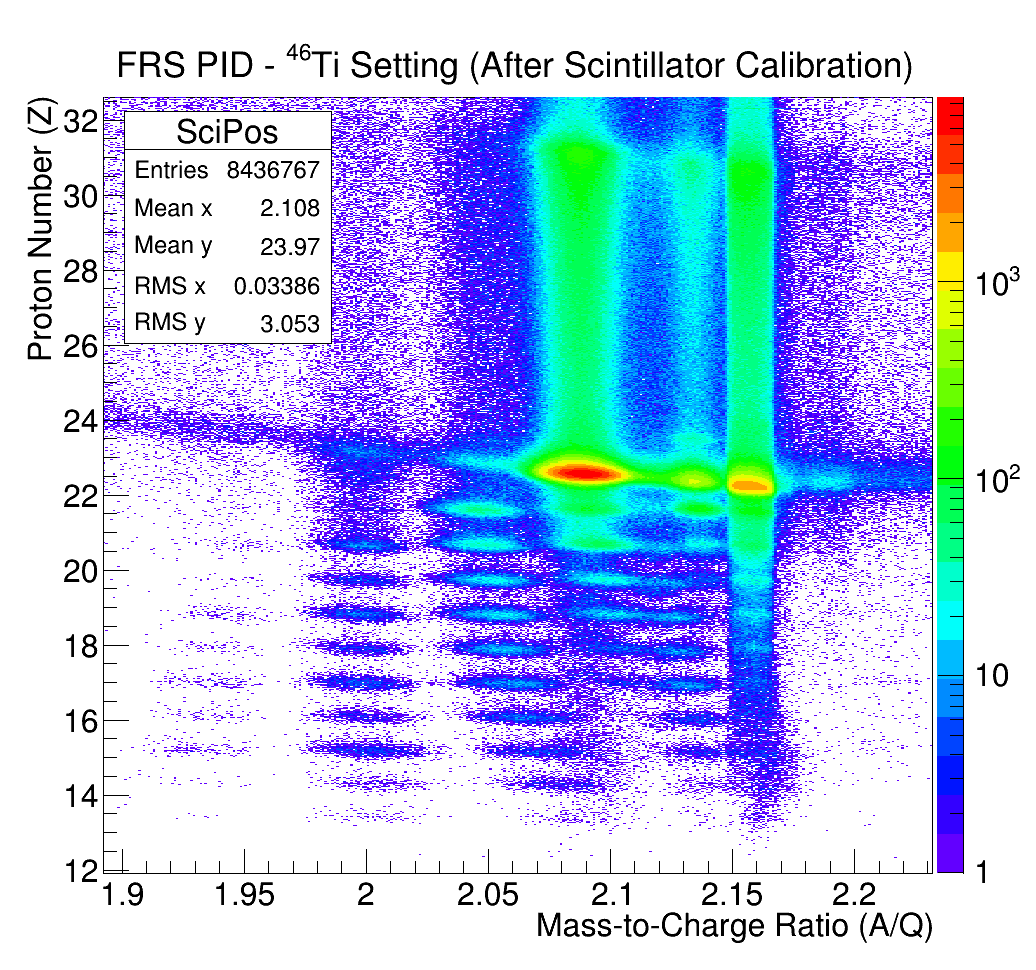

As for a close up, with log Z:

index.php?t=getfile&id=8104&private=0

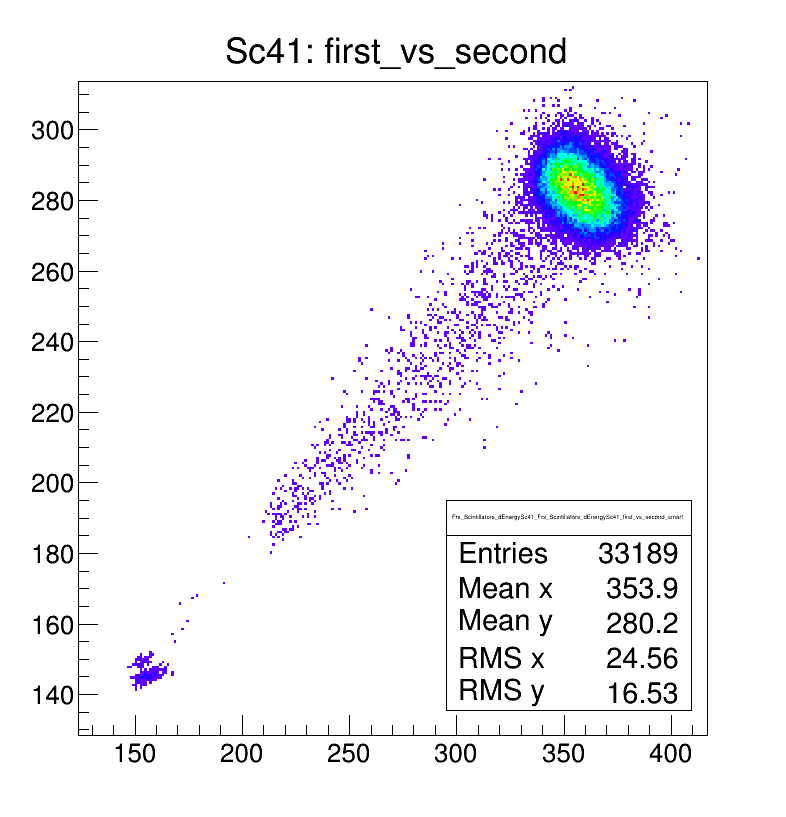

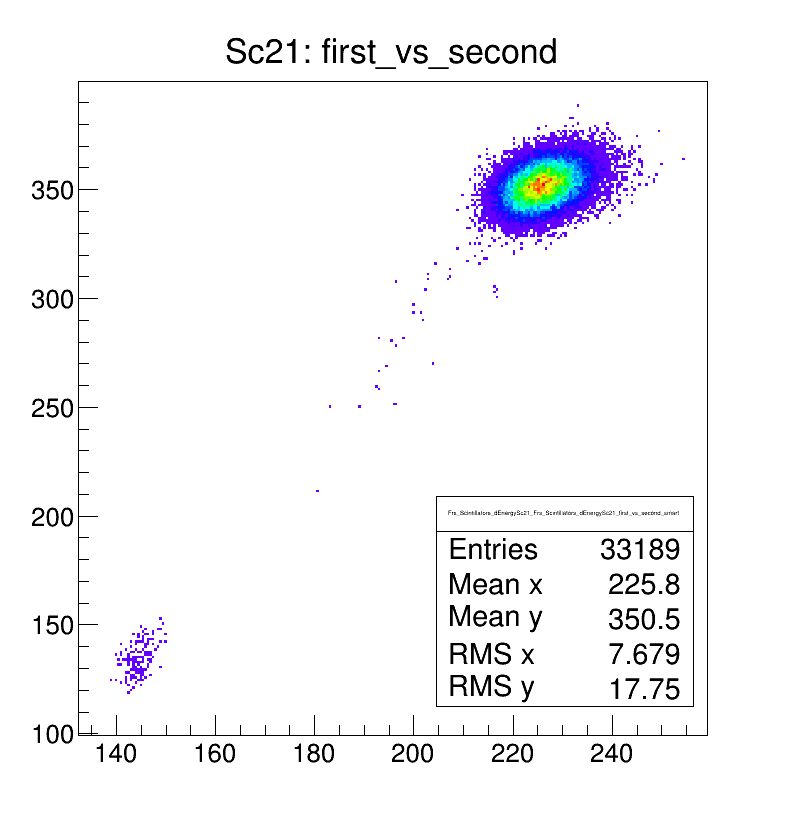

As for the energy left vs energy right of Sc21 and Sc41:

index.php?t=getfile&id=8105&private=0

index.php?t=getfile&id=8106&private=0

Thanks,
Scott
