Re: Reco Hit for TpcCluster [message #8306 is a reply to message #8295]

Mon, 27 April 2009 10:59

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: *to.infn.it

Hi,
I have compared the results of genfit using tpc+mvd, 1000 muons at 1GeV/c.

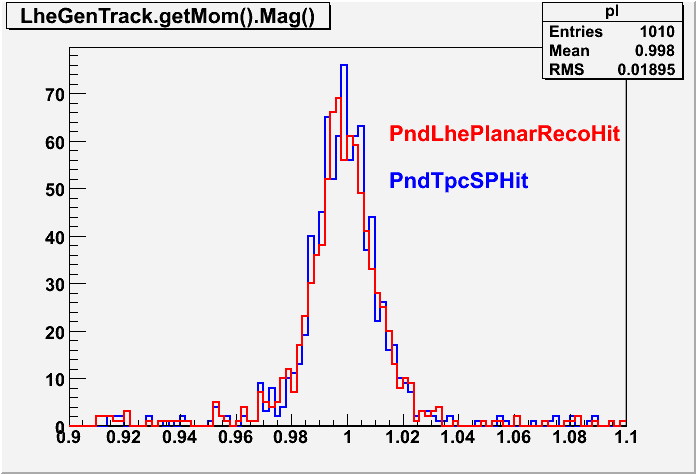

Here you are the momentum distributions, with the two different RecoHits:

index.php?t=getfile&id=5294&private=0

The results are quite stable, if I fit the two peaks with a gaussian from 0.9 to 1.1, I obtain:

Planar: sigma 10.5 MeV/c, chi2/ndf = 1.3
SPHit: sigma 10.2 MeV/c, chi2/ndf = 1.5

Let's say they are almost comparable.
However, I will commit the code using the official PndTpcSPHit.

Attachment: recohit_comp.gif
(Size: 12.20KB, Downloaded 643 times)

Report message to a moderator

[Message index]

		Reco Hit for TpcCluster By: StefanoSpataro on Fri, 24 April 2009 12:44
		Re: Reco Hit for TpcCluster By: Sebastian Neubert on Fri, 24 April 2009 13:44
		Re: Reco Hit for TpcCluster By: StefanoSpataro on Mon, 27 April 2009 10:59
