Energy loss in EMC: bug solved [message #6781] Tue, 27 May 2008 11:33
StefanoSpataro is currently offline  StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino
first-grade participant

From: *physik.uni-giessen.de
Dear all,
Ivana has corrected the bug that was present in geant4_vmc with the option "specialCuts":

The cut was applied by mistake also to e+, and due to this, the e+ did not annihilated and so we did not recuperate the energy released in annihilation.

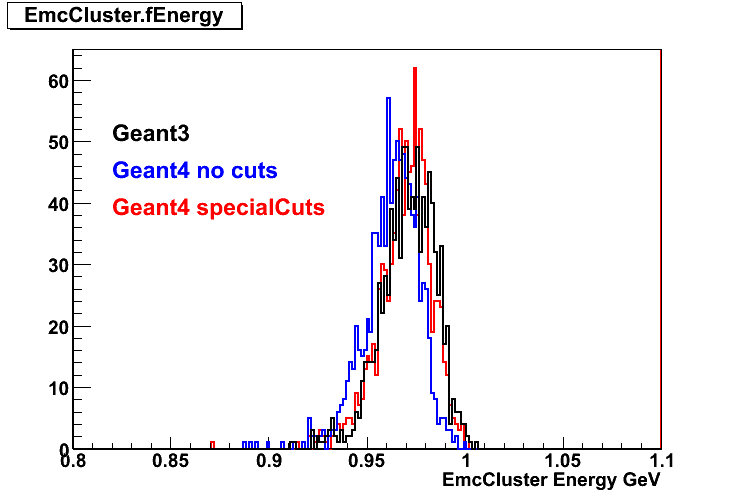

I did some studies with the 5x5 EMC test setup, using the r341 of VirtualMC, and this is the energy deposited for 1000 photons at 1 GeV:

index.php?t=getfile&id=4489&private=0

In terms of CPU time, to run 1000 photons at 1GeV:

geant3: 45 s
geant4 all: 274 s
geant4 cuts: 151 s

File size:

g3: 57 M
g4 all: 289 M
g4 cuts: 137 M

So, now it seems ok from this side(even if I have to think a bit about the file size-> number of mc points). However further studies should be run in the next future, and with the full geometry.


  • Attachment: newcomp.gif
    (Size: 11.37KB, Downloaded 1029 times)
