Influence of the reduced B-field on the track reconstruction [message #16019]

Sat, 22 March 2014 00:50

donghee
Messages: 385
Registered: January 2009
Location: Germnay

first-grade participant

From: *dip0.t-ipconnect.de

Hi Stefano,

I try to see the effect of reduced B-field, which was intensively discussed during this week.

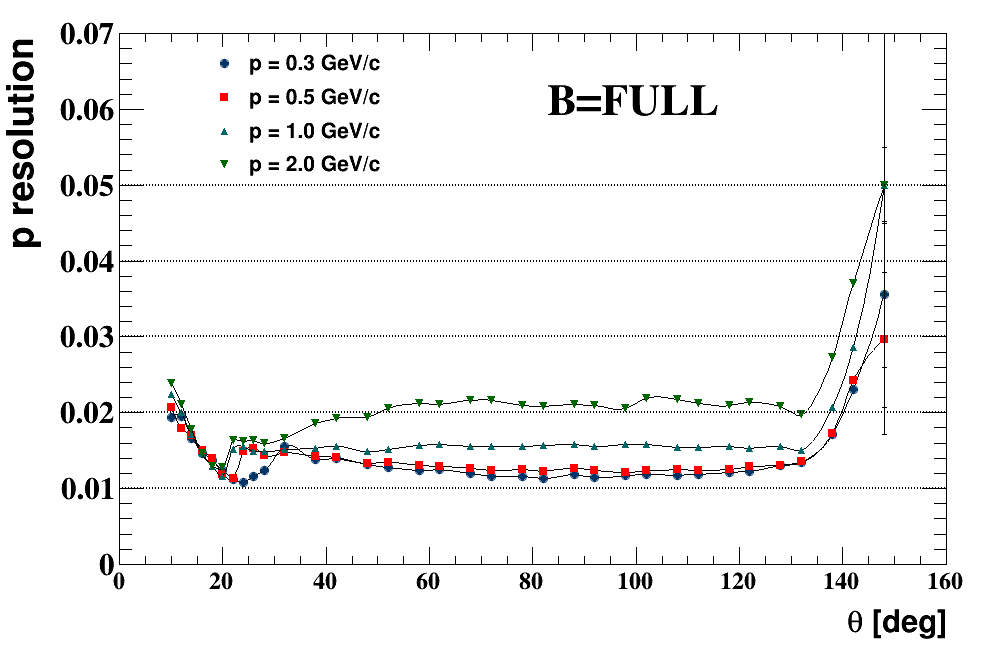

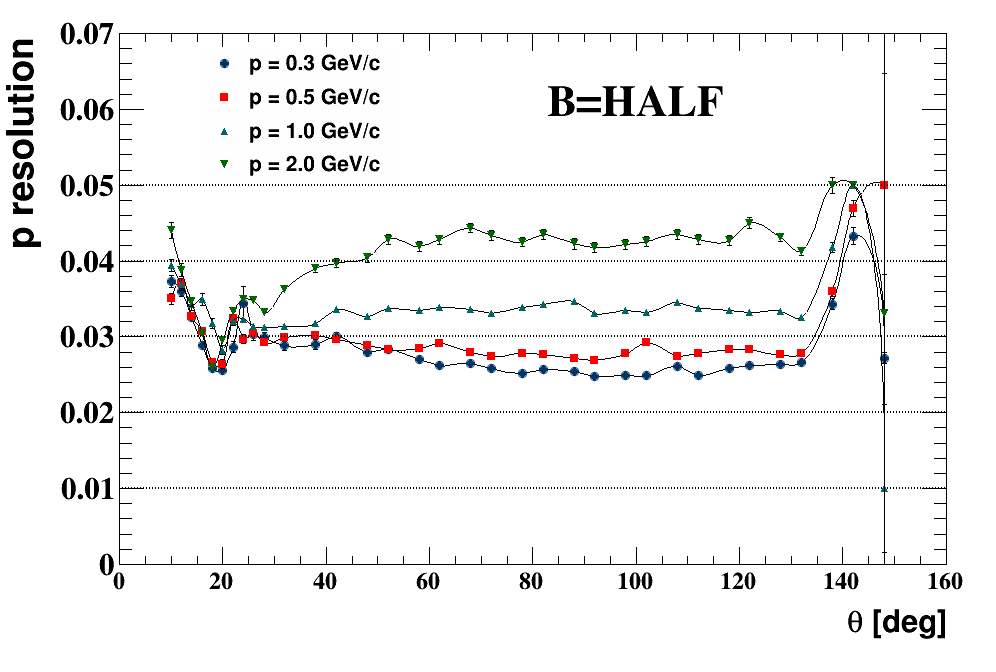

Two plots are produced to compare the momentum resolution with two diffrent field map configurations for "FULL" and "HALF".
Simulation has been made with single Muon particle with momentum range starting from 0.3 GeV upto 2 GeV, and scan theta between 10 and 148 degree.
PANDAroot Jan14 has been used and simulation codes are attached to cross check.
The pull distributions of momentum for p=0.3 GeV and both Half and Full field map configurations cases are also attached to make sure the fit procedure. (Gauss+Pol(3) has been used.)

The momentum resolution with half field map is factor 2 times worser than FULL field map.
If you want to check the analysis code, please let me know, I will send you.

Best wishes,
Donghee

index.php?t=getfile&id=7769&private=0

Attachment: run_pid_dig.C
(Size: 4.61KB, Downloaded 501 times)
Attachment: run_pid_pid.C
(Size: 3.64KB, Downloaded 496 times)
Attachment: run_pid_rec.C
(Size: 5.42KB, Downloaded 501 times)
Attachment: run_pid_sim.C
(Size: 7.50KB, Downloaded 470 times)
Attachment: resolution_B_half_03.pdf
(Size: 113.66KB, Downloaded 488 times)
Attachment: resolution_B_full_03.pdf
(Size: 108.46KB, Downloaded 471 times)
Attachment: summary_for_B_full.pdf
(Size: 20.00KB, Downloaded 471 times)
Attachment: summary_for_B_full.png
(Size: 25.70KB, Downloaded 1284 times)
Attachment: summary_for_B_half.pdf
(Size: 24.03KB, Downloaded 467 times)
Attachment: summary_for_B_half.png
(Size: 28.20KB, Downloaded 1145 times)

[Updated on: Sat, 22 March 2014 00:53]

Report message to a moderator

[Message index]

		Influence of the reduced B-field on the track reconstruction By: donghee on Sat, 22 March 2014 00:50
		Re: Influence of the reduced B-field on the track reconstruction By: StefanoSpataro on Sat, 22 March 2014 11:51
		Re: Influence of the reduced B-field on the track reconstruction By: Gianluigi Boca on Sun, 23 March 2014 20:48
		Re: Influence of the reduced B-field on the track reconstruction By: donghee on Tue, 25 March 2014 14:40
		Re: Influence of the reduced B-field on the track reconstruction By: Gianluigi Boca on Tue, 25 March 2014 18:01
		Re: Influence of the reduced B-field on the track reconstruction By: StefanoSpataro on Tue, 25 March 2014 18:03
		Re: Influence of the reduced B-field on the track reconstruction By: MartinJGaluska on Thu, 03 April 2014 17:06
		Re: Influence of the reduced B-field on the track reconstruction By: StefanoSpataro on Thu, 03 April 2014 17:07
