Help in Creating a new diamond detector for Pid [message #14989]

Sun, 21 July 2013 08:19

Shyam Kumar
Messages: 78
Registered: September 2012
Location: Mumbai, Maharashtra India

continuous participant

From: 103.21.124*

Hi,
I want to check if I use the diamond sensor (TOF) timing (100ps) as a trigger detector what will be improvement in Pid? for this I have made the geometry of detector.Please suggest me how can I add this detector in simulation?

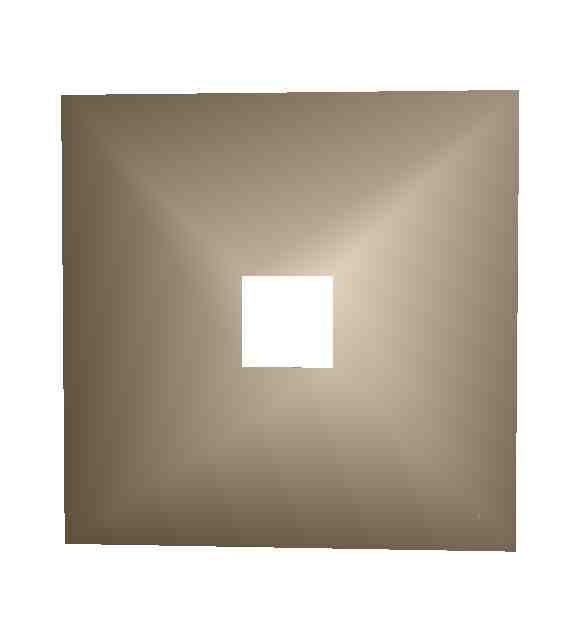

Attachment: diamondsensor2.jpg
(Size: 9.38KB, Downloaded 1216 times)
Attachment: Diamondsensor1.jpg
(Size: 11.39KB, Downloaded 1248 times)

Report message to a moderator

Re: Help in Creating a new diamond detector for Pid [message #14990 is a reply to message #14989]

Sun, 21 July 2013 12:06

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: 2.235.190*

You can use the tutorial given in the Torino Computing week, at the following link:

https://indico.gsi.de/conferenceOtherViews.py?view=nicecompact&confI d=1602

Report message to a moderator

Re: Help in Creating a new diamond detector for Pid [message #14991 is a reply to message #14990]

Sun, 21 July 2013 14:03

Shyam Kumar
Messages: 78
Registered: September 2012
Location: Mumbai, Maharashtra India

continuous participant

From: 103.21.125*

Thank you for Reply

Report message to a moderator

Re: Help in Creating a new diamond detector for Pid [message #14997 is a reply to message #14989]

Tue, 23 July 2013 09:31

Shyam Kumar
Messages: 78
Registered: September 2012
Location: Mumbai, Maharashtra India

continuous participant

From: 103.21.127*

Hi
If I want to plot any two things in pid by using the below expression then what should I write in place of MCTrack.fMotherID!=-1.

cbmsim.Draw("MCTrack.fStartX:MCTrack.fStartY>>aa(200,-200,200,200,-200,200) ","MCTrack.fMotherID!=-1","colz“)

Report message to a moderator

Re: Help in Creating a new diamond detector for Pid [message #14998 is a reply to message #14997]

Tue, 23 July 2013 09:41

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: 2.235.190*

cbmsim.Draw("PidChargedCand.GetEmcRawEnergy ():PidChargedCand.GetMomentum().Mag()>>aa(200,0,2,200,0,2) ","PidChargedCand.GetEmcQuality()>-1&&PidChargedCand.GetFitStatus() >0","colz“)

Report message to a moderator
