Different geometry treatment in Geant3 and Geant4 [message #14520]

Wed, 20 March 2013 11:19

Tobias Stockmanns
Messages: 489
Registered: May 2007

first-grade participant

From: *ikp.kfa-juelich.de

Dear pandaRooters,

for the simulation of the additional Lambda disks I have created a root file coming from the CAD converter. If I use this file in Geant3 the inner ring of detectors of the second disk does not see any hit points while the first one sees all points. Doing the same in Geant4 I get from all detectors points.

Has anyone observed such a behavior before or even knows how to fix it?

Cheers,

Tobias

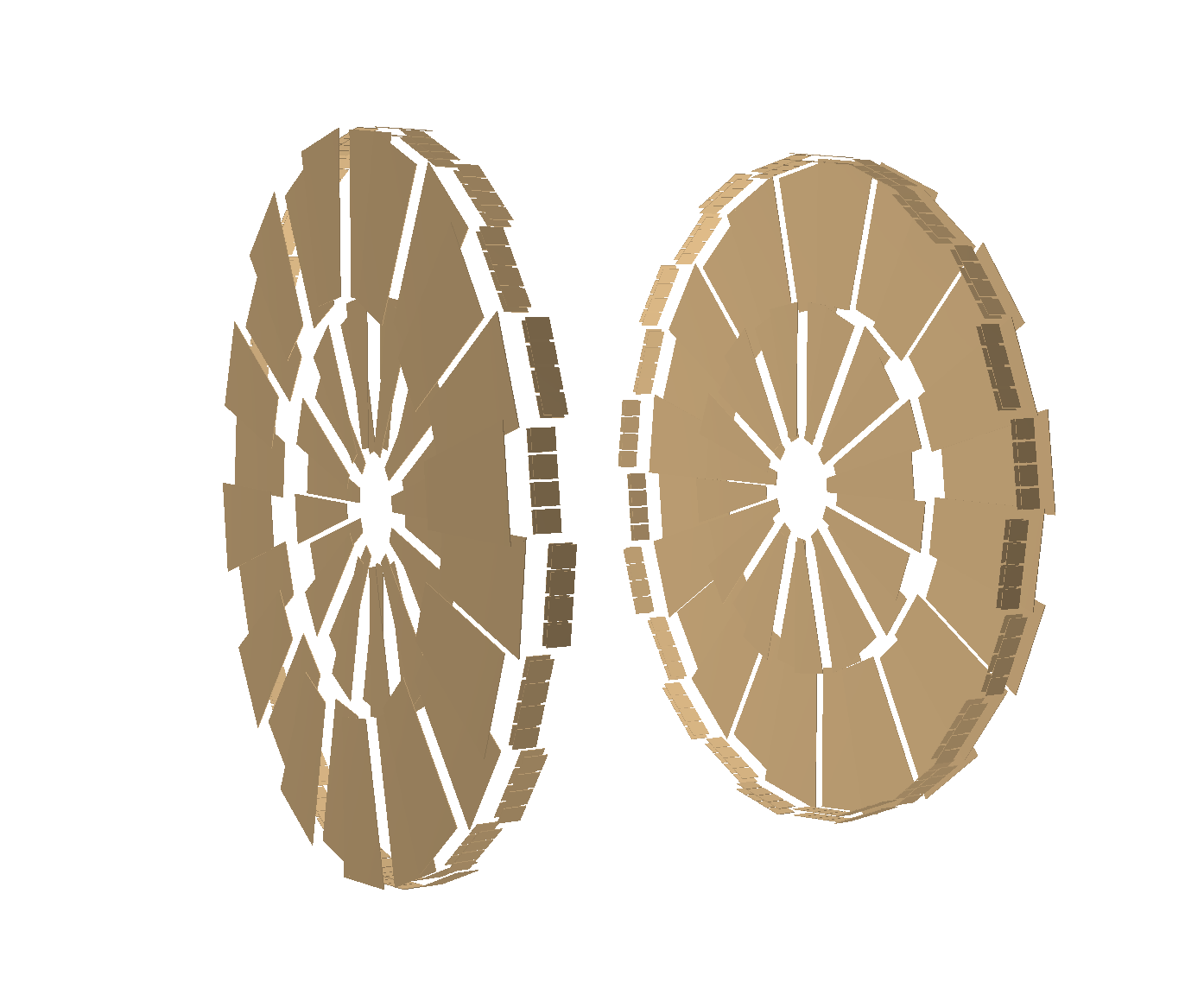

Attachment: LambdaDisks_Geant4.png
(Size: 75.02KB, Downloaded 478 times)
Attachment: LambdaDisks_Geant3.png
(Size: 55.54KB, Downloaded 480 times)
Attachment: LambdaDisks_Geant3_Hitpoints.png
(Size: 34.83KB, Downloaded 532 times)
Attachment: LambdaDisks_Geant4_Hitpoints.png
(Size: 34.30KB, Downloaded 512 times)

Report message to a moderator

Re: Different geometry treatment in Geant3 and Geant4 [message #14521 is a reply to message #14520]

Wed, 20 March 2013 11:33

Mohammad Al-Turany
Messages: 518
Registered: April 2004
Location: GSI, Germany

first-grade participant

From: *dip.t-dialin.net

Hi Tobias,

I could guess that it has to do with the level of assemblies. But can you tell me how to reproduce this? could you put the macro and the geometry in development branch or send them to me directly.

Mohammad
