Re: failure of QA macro of EMC reconstruction [message #9873 is a reply to message #9871]

Sat, 05 December 2009 17:15

Johan Messchendorp
Messages: 693
Registered: April 2007
Location: University of Groningen

first-grade participant

From: *xs4all.nl

Hi,

I just run it (QAmacro_emc_x.C) with 10000 events and there is really a significant shift in phi... well, at least on my computer. Let me attach figures which shows it: the difference between phi(cluster)-phi(MC) versus the phi angle (!) of the photon (histogram h2phi in the macro)...

index.php?t=getfile&id=5757&private=0

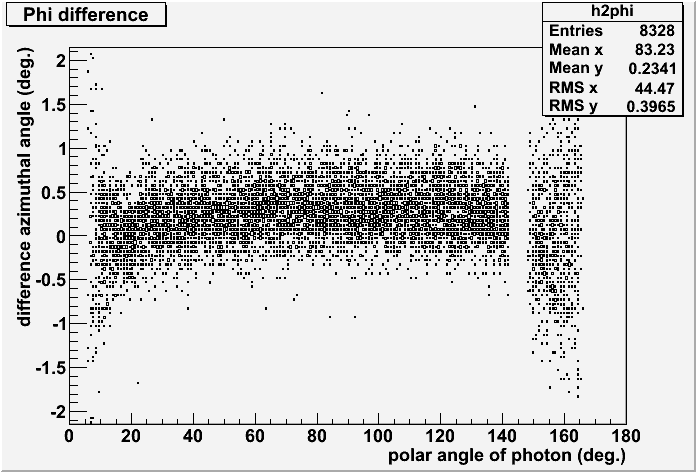

Alternatively, the difference against the polar angle... it appears to be related to the barrel part...

index.php?t=getfile&id=5758&private=0

Greetings,

Johan

Attachment: diffphi.gif
(Size: 16.77KB, Downloaded 1415 times)
Attachment: diffphivstheta.gif
(Size: 16.29KB, Downloaded 1340 times)

[Updated on: Sat, 05 December 2009 17:27]

Report message to a moderator

[Message index]

		failure of QA macro of EMC reconstruction By: Johan Messchendorp on Sat, 05 December 2009 13:47
		Re: failure of QA macro of EMC reconstruction By: StefanoSpataro on Sat, 05 December 2009 16:22
		Re: failure of QA macro of EMC reconstruction By: Johan Messchendorp on Sat, 05 December 2009 17:15
		Re: failure of QA macro of EMC reconstruction By: StefanoSpataro on Sun, 06 December 2009 00:23
		Re: failure of QA macro of EMC reconstruction By: Johan Messchendorp on Sun, 06 December 2009 00:35
		Re: failure of QA macro of EMC reconstruction By: mpeliz on Sun, 06 December 2009 12:00
		Re: failure of QA macro of EMC reconstruction By: StefanoSpataro on Sun, 06 December 2009 12:23
		Re: failure of QA macro of EMC reconstruction By: Johan Messchendorp on Sun, 06 December 2009 13:00
		Re: failure of QA macro of EMC reconstruction By: Elwin Dijck on Sun, 06 December 2009 14:32
		Re: failure of QA macro of EMC reconstruction By: Johan Messchendorp on Sun, 06 December 2009 16:29
		Re: failure of QA macro of EMC reconstruction By: StefanoSpataro on Sun, 06 December 2009 16:53
		Re: failure of QA macro of EMC reconstruction By: Elwin Dijck on Sun, 06 December 2009 17:49
