Tue, 30 November 2004 11:50

fateev
Messages: 2
Registered: November 2004

occasional visitor

From: 159.93.123*

Hello,
we solder the resistors on anode side.
ground from last resistor comes out next to anode side.

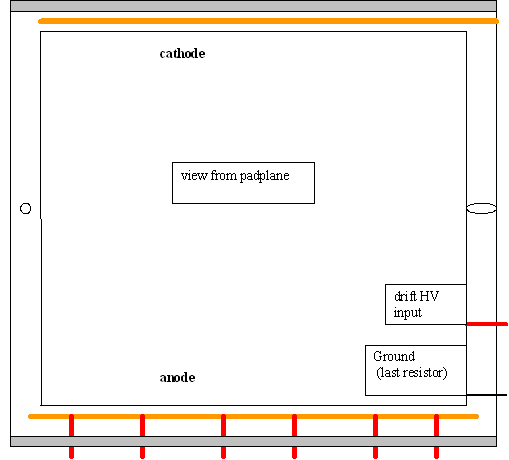

look at a drawing

cheers,
Oleg
