New Muon Geometry [message #9063]

Fri, 24 July 2009 11:09

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: *to.infn.it

Hello,
I have committed in svn the last version of the muon detector geometry (done by George), including also the muon filter.
Inside the code there are also the classes to create the return yoke and the absorber, considering that the actual version of the solenoid is not working.

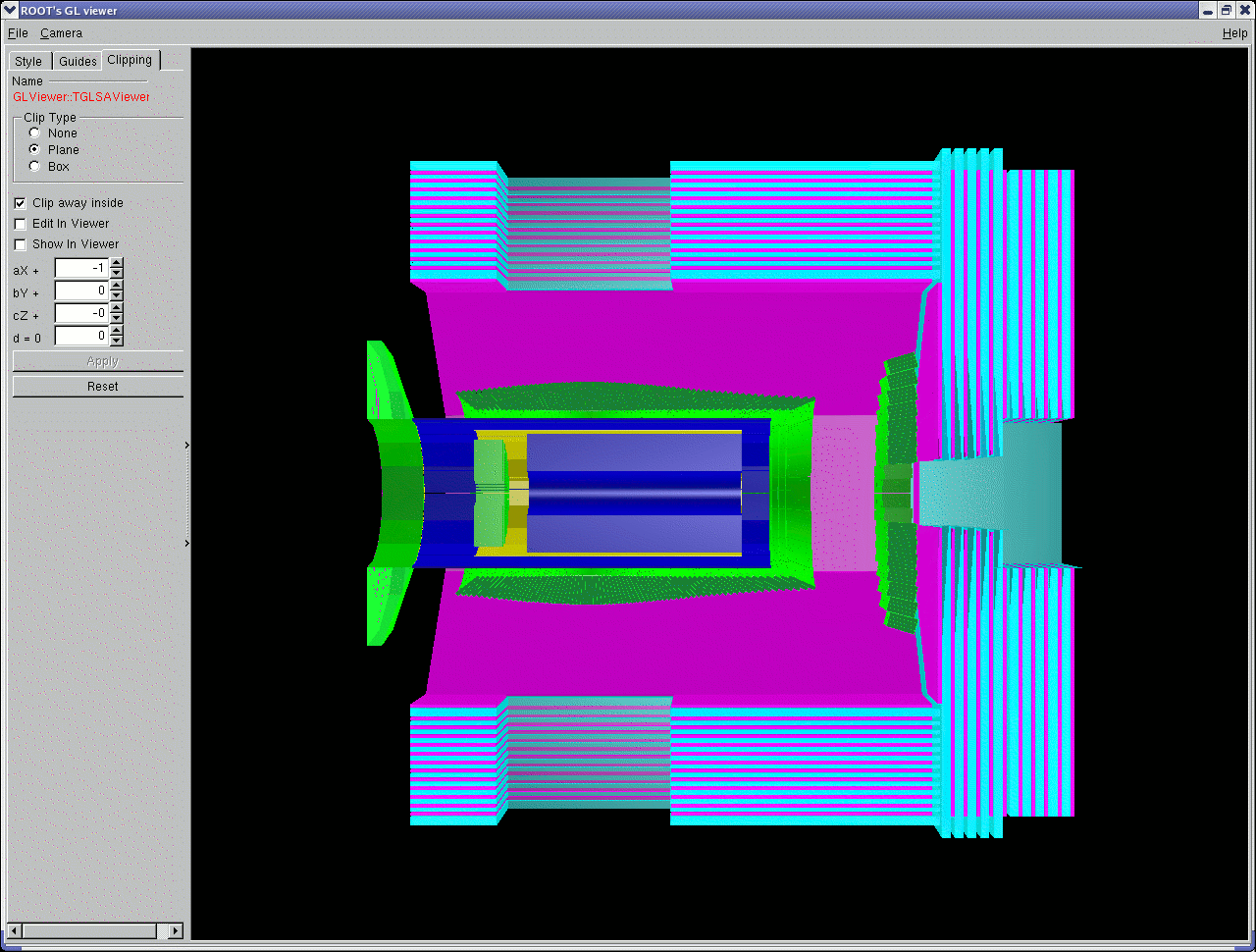

The following is the plot of the geometry:

index.php?t=getfile&id=5543&private=0

You can see the hole for the target pipe, and the additional muon filter. DCH geometry should be tested, to see if it fits inside the muon fitler (the size is taken from integration design ver. 0.1.15 (2009-06-05)).
In macro/mdt you can find the sim_muo.C macro to use that geometry (waiting that the solenoid is ready).

Regards

Attachment: newmuo.gif
(Size: 220.22KB, Downloaded 1248 times)
