Problems with MVD geometries [message #8463]

Fri, 08 May 2009 10:24

Simone Bianco
Messages: 29
Registered: January 2009

continuous participant

From: *cb.uni-bonn.de

Hi,

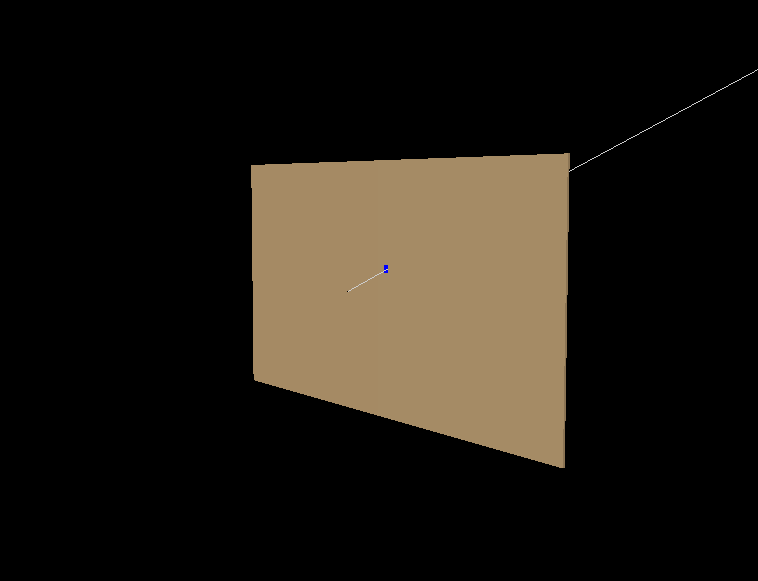

I am facing some problems while defining detectors for the forward part of the MVD. If I use a rectangular detector (see the screenshot from the eventdisplay that I am attaching) everything works fine, but if I introduce a trapezoidal detector (as the strips modules must be) the simulation is not storing any hit on this detector. I checked (see trapezoidal.png) and there are particles crossing my detector, however there are no MVD hits. I tryed with different distances from the center of the frame and the only thing making it work is to change the shape of the detector from a trapezoidal to a rectangular one. I also made a check with a circular detector and it is working. So the only shape showing problem seems to be the trapezoidal one.
I attach to this message the .root files with the two different geometry definitions and the macros which I used (runMvdSim.C and eventDisplay.C).
Does anybody have an idea about the reason of this behaviour?

Cheers,

Simone

index.php?t=getfile&id=5315&private=0

Attachment: Rectangular.png
(Size: 2.96KB, Downloaded 729 times)
Attachment: Trapezoidal.png
(Size: 4.04KB, Downloaded 606 times)
Attachment: Example1-Rectangular.root
(Size: 5.68KB, Downloaded 348 times)
Attachment: Example2-Trapazoidal.root
(Size: 5.86KB, Downloaded 350 times)
Attachment: runMvdSim.C
(Size: 2.59KB, Downloaded 318 times)
Attachment: eventDisplay.C
(Size: 3.69KB, Downloaded 344 times)

Report message to a moderator

Re: Problems with MVD geometries [message #8467 is a reply to message #8463]

Fri, 08 May 2009 14:44

Ralf Kliemt
Messages: 507
Registered: May 2007
Location: GSI, Darmstadt

first-grade participant

From: *to.infn.it

Hello everyone,

A comment:
I already communicated to Simone and it looks like it is not connected to a flaw in the Mvd code. I suspect our geometry handling to be not coming along with the trapezoids. Were there changes lately in root or the framework?

The geometry was retrieved from the a CAD drawing with the StepConverter.

Ralf.

Report message to a moderator

Re: Problems with MVD geometries [message #8517 is a reply to message #8467]

Tue, 12 May 2009 09:47

Tobias Stockmanns
Messages: 489
Registered: May 2007

first-grade participant

From: *ikp.kfa-juelich.de

Dear Ralf and Simone,

can you please check how the trapezoid is translated from CAD to root. Is it done as a trap or as an arbitrary8?

You can check this in CxlInfoPart.cc. If the first line of IsTrap() is commented out (return false), than it gives back traps, otherwise Arb8.

Independent how the setting is, change this line and check if now hits are produced.

Cheers,

Tobias

Report message to a moderator

Re: Problems with MVD geometries [message #8518 is a reply to message #8517]

Tue, 12 May 2009 10:19

Simone Bianco
Messages: 29
Registered: January 2009

continuous participant

From: *cb.uni-bonn.de

Dear Tobias,

Thanks for your suggestion. The first line of IsTrap() was commented out, I tried uncommenting it and recompiling the converter, but the results are the same: I see the correct trapezoidal shape in the event display, but I have no hits on the detector. I attach to this message the .root file generated with this change in the cad converter.

Cheers,

Simone

Attachment: Example2-Trapazoidal2.root
(Size: 5.86KB, Downloaded 332 times)

Report message to a moderator

Re: Problems with MVD geometries [message #8520 is a reply to message #8518]

Tue, 12 May 2009 10:59

Tobias Stockmanns
Messages: 489
Registered: May 2007

first-grade participant

From: *ikp.kfa-juelich.de

Hi Simone,

add the line "return false;" at the beginning of the method IsBox(). Rerun the converter and your simulation macro. Do the rectangular sensors still show hits?

Cheers,

Tobias

Report message to a moderator

Re: Problems with MVD geometries [message #8521 is a reply to message #8520]

Tue, 12 May 2009 11:09

Simone Bianco
Messages: 29
Registered: January 2009

continuous participant

From: *cb.uni-bonn.de

Yes, it still shows hits also adding "return false" in the IsBox() method.

Report message to a moderator

Re: Problems with MVD geometries [message #8522 is a reply to message #8521]

Tue, 12 May 2009 11:14

Tobias Stockmanns
Messages: 489
Registered: May 2007

first-grade participant

From: *ikp.kfa-juelich.de

Hi Simone,

then I think something else is wrong. Because now the trapezoidal and the rectangular sensor are made with the same RootGeometry (Arb8).

Have you changed the name of the trapezoidal sensor? Is this name in the list of sensitive detectors in the constructor of PndMvdDetector?

Ciao, Tobias

Report message to a moderator

Re: Problems with MVD geometries [message #8523 is a reply to message #8522]

Tue, 12 May 2009 11:21

Simone Bianco
Messages: 29
Registered: January 2009

continuous participant

From: *cb.uni-bonn.de

I am sorry, before I made a mistake and I was still using the old geometry file. So, now I tried with the new one (rectangular shape, converted with the "return false" line in the IsBox() method) and I got no hits.
In this situation I don't see anymore the detector in the event display (while I was able to see the trapezoidal one).
The names of the volumes contain "StripActive" and are the same for the different geometries I was using.

Cheers,

Simone

Report message to a moderator

Re: Problems with MVD geometries [message #8524 is a reply to message #8523]

Tue, 12 May 2009 11:36

Tobias Stockmanns
Messages: 489
Registered: May 2007

first-grade participant

From: *ikp.kfa-juelich.de

Hi Simone,

it seems that there is a problem with the Arb8 geometry. Arb8 is sensitive to the order you define the 8 points. Maybe this could be the problem. Do you get any warnings from ROOT that some geometries are strange?

Unfortunately I do not have the time at the moment to debug it by myself. Maybe you can have a look into the root-description (hopefully they say something about it) and check it in the file CxlBuildPart_Arb8.cc.

Ciao,

Tobias

Report message to a moderator

Re: Problems with MVD geometries [message #8528 is a reply to message #8524]

Tue, 12 May 2009 14:02

Simone Bianco
Messages: 29
Registered: January 2009

continuous participant

From: *cb.uni-bonn.de

this is part of the output that I get from the simulation:

Register Volume : StripActiveoTrapM id
Sensitive Volume : StripActiveoTrapM id
Register Volume : StripActiveoTrapMoPartAss id
Sensitive Volume : StripActiveoTrapMoPartAss id
FairMCApplication::ConstructGeometry() : Now closing the geometry
Info in <TGeoManager::CheckGeometry>: Fixing runtime shapes...
Info in <TGeoManager::CheckGeometry>: ...Nothing to fix
Info in <TGeoManager::CloseGeometry>: Counting nodes...
Info in <TGeoManager::Voxelize>: Voxelizing...
Info in <TGeoManager::CloseGeometry>: Building cache...
Info in <TGeoNavigator::BuildCache>: --- Maximum geometry depth set to 100
Info in <TGeoManager::CloseGeometry>: 4 nodes/ 4 volume UID's in FAIR geometry
Info in <TGeoManager::CloseGeometry>: ----------------modeler ready----------------
Info in <TG4RootNavMgr::SetNavigator>: TG4RootNavigator created and registered to G4TransportationManager
Running TVirtualMCApplication::ConstructGeometry
*************************************************************
Geant4 version Name: geant4-09-01-patch-02 (9-May-2008)
Copyright : Geant4 Collaboration
Reference : NIM A 506 (2003), 250-303
WWW : http://cern.ch/geant4
*************************************************************

Info in <TG4RootNavMgr::Initialize>: Creating G4 hierarchy ...
Info in <TGeoManager::ConvertReflections>: Converting reflections in: FAIRGeom - FAIR geometry ...
Info in <TGeoManager::ConvertReflections>: Done
===> GEANT4 materials created and mapped to TGeo ones...
===> GEANT4 physical volumes created and mapped to TGeo hierarchy...
### INFO: TG4RootDetectorConstruction::Construct() finished
TG4PostDetConstruction::Initialize
G4 Stat: instantiated 4 logical volumes
3 physical volumes
Info in <TG4RootNavMgr::ConnectToG4>: ROOT detector construction class connected to G4RunManager
Adding HadronPhysicsList QGSP_BERT_EMV

<<< Geant4 Physics List engine packaging library: PACK 5.4
<<< Geant4 Physics List simulation engine: QGSP_BERT_EMV 1.0

Adding SpecialPhysicsList stepLimiter+specialCuts+specialControls
Debug mode is switched on.
Visualization Manager instantiating...
Visualization Manager initialising...
Registering graphics systems...

It seems to me that there are no strange messages. However, I will have a look at the file regarding Arb8.

Cheers,

Simone
