Nice plots. [message #7119]

Fri, 25 July 2008 13:32

Ralf Kliemt
Messages: 507
Registered: May 2007
Location: GSI, Darmstadt

first-grade participant

From: 141.30.85*

Hi all,

I know everyone likes his/her own style of plots. But anyway I'll share my stuff: In pandaroot/macro/mvd/Tools.C you will find a few helpful functions. Especially I'd like to point out that we had two frameworks ago a common root styleset for panda which the collaboration agreed on. I reanimated this one but could not resist to make some few changes to suit my taste.

To use it in a macro do:

  gROOT->LoadMacro(" ... mvd/Tools.C");
  LoadPandaStyle();

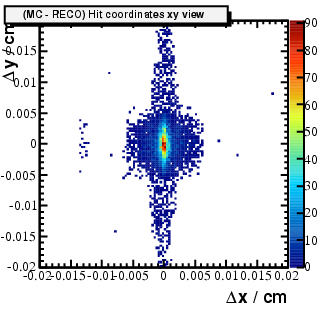

To have nice 2d histograms with a smooth palette use

  DrawNice2DHisto(hisxy);

And finally for multiple Histograms in one plot (picture below)

  hisClustSize->Draw();
  hisClustSizeBot->SetLineColor(kRed);
  hisClustSizeTop->SetLineColor(kBlue);
  hisClustSizeBot->Draw("sames");
  hisClustSizeTop->Draw("sames");
  can7->Update();
  TPad* mypad=(TPad*)gPad;
  BetterStatBox(mypad);
