Geant 3, Geant 4 VMC, native geant 4 comparison [message #5940]

Fri, 22 February 2008 12:20

Dima Melnychuk
Messages: 213
Registered: April 2004
Location: National Centre for Nucle...

first-grade participant

From: *fuw.edu.pl

Hi again,

I put here a couple of plots that demonstrate difference in deposited energy for Geant3, Geant4 VMC and native Geant4.

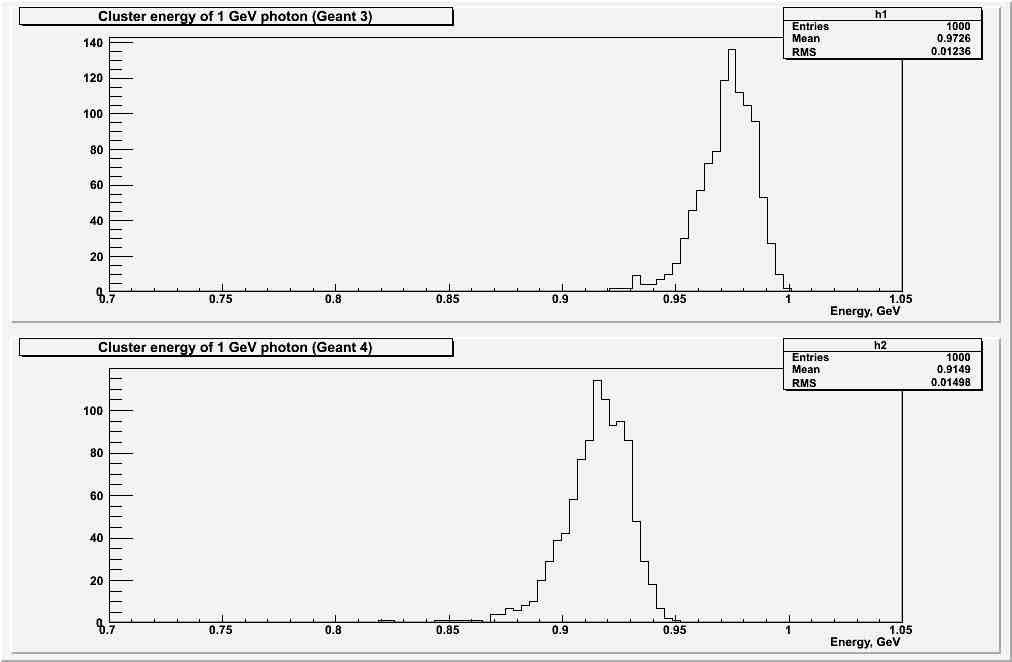

So cluster_energy_full.jpg - index.php?t=getfile&id=4193&private=0

is energy deposited from 1GeV photon in emc barrel (theta=50, phi=0-360).

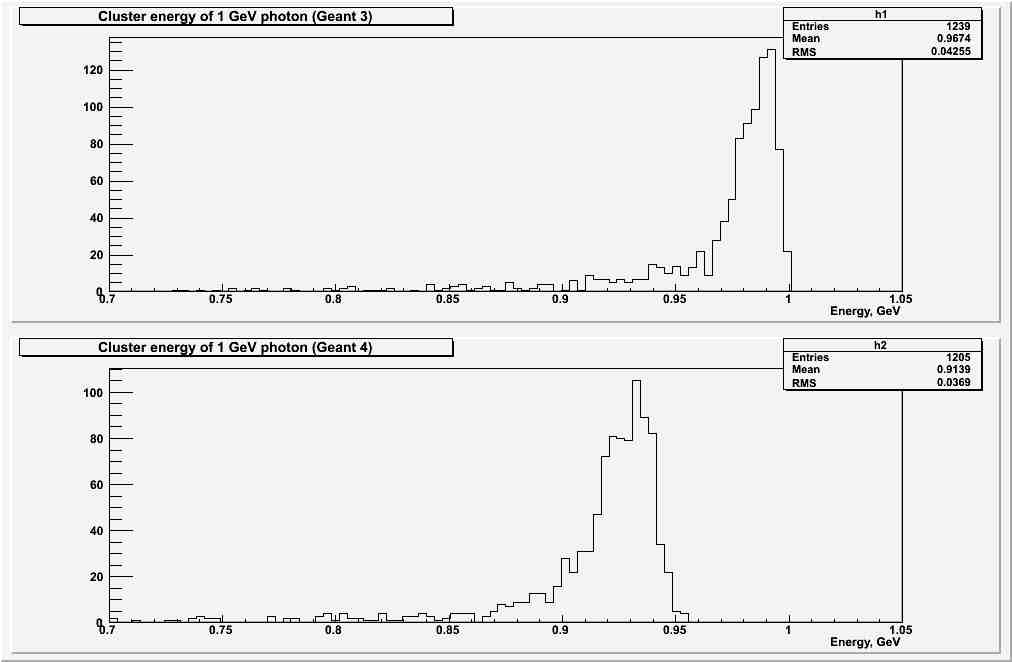

And it is comparable with energy deposited in EmcTest setup (5x5 PbWO4 crystals), implemented by Stefano.
index.php?t=getfile&id=4194&private=0

So around 5% of energy is lost somewhere for Geant4 and it doesn't come from complicated emc geometry.

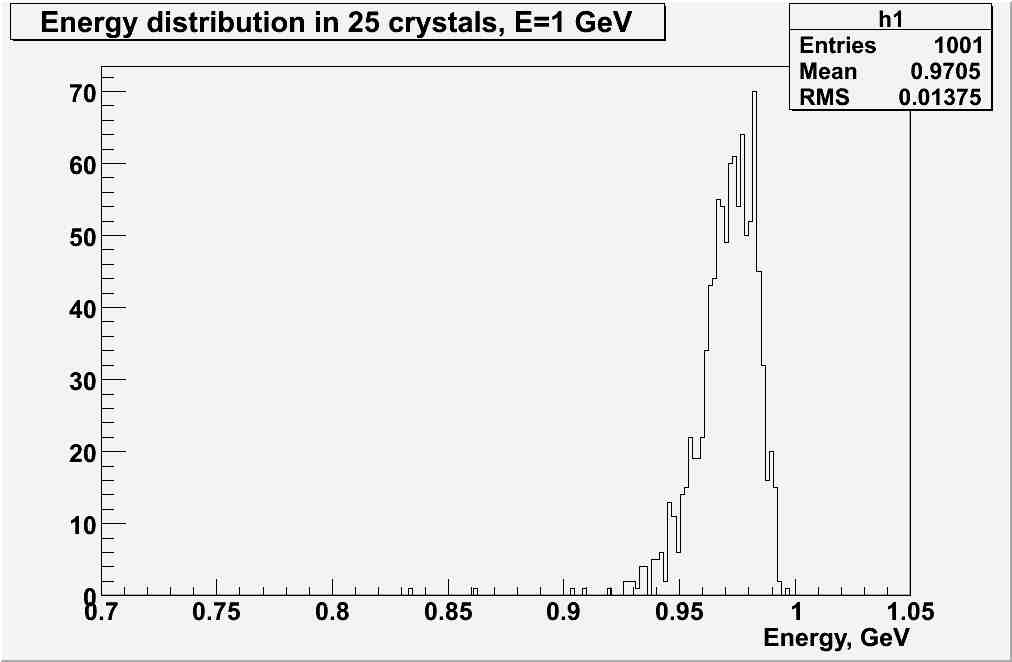

But with native Geant4 application
index.php?t=getfile&id=4195&private=0

deposited energy is similar to Geant3 VMC and close to the value calculated by Jan in Babar framework for the whole EMC.
http://tau.ep1.rub.de/HyperNews/get/SimGenDisc/2159/1/1/1/1/1.html

So the difference doesn't come from the different Geant4 version
4.7 in Babar framework vs. 4.9 in pandaroot (which I also used in native Geant4 application).

So the source of difference is still under investigation,

Dima

Attachment: cluster_energy_full.jpg
(Size: 35.82KB, Downloaded 1158 times)
Attachment: cluster_energy_test.jpg
(Size: 34.97KB, Downloaded 1212 times)
Attachment: cluster_energy_g4.jpg
(Size: 32.42KB, Downloaded 1222 times)
