| Note on energyloss in GEANT [message #5879] |
Thu, 14 February 2008 15:07 |
Ralf Kliemt
Messages: 507
Registered: May 2007
Location: GSI, Darmstadt
|
first-grade participant |
From: 141.30.85*
|
|
Hi all,
Klaus, a student in Desden, found the following behavior:| Quote: |

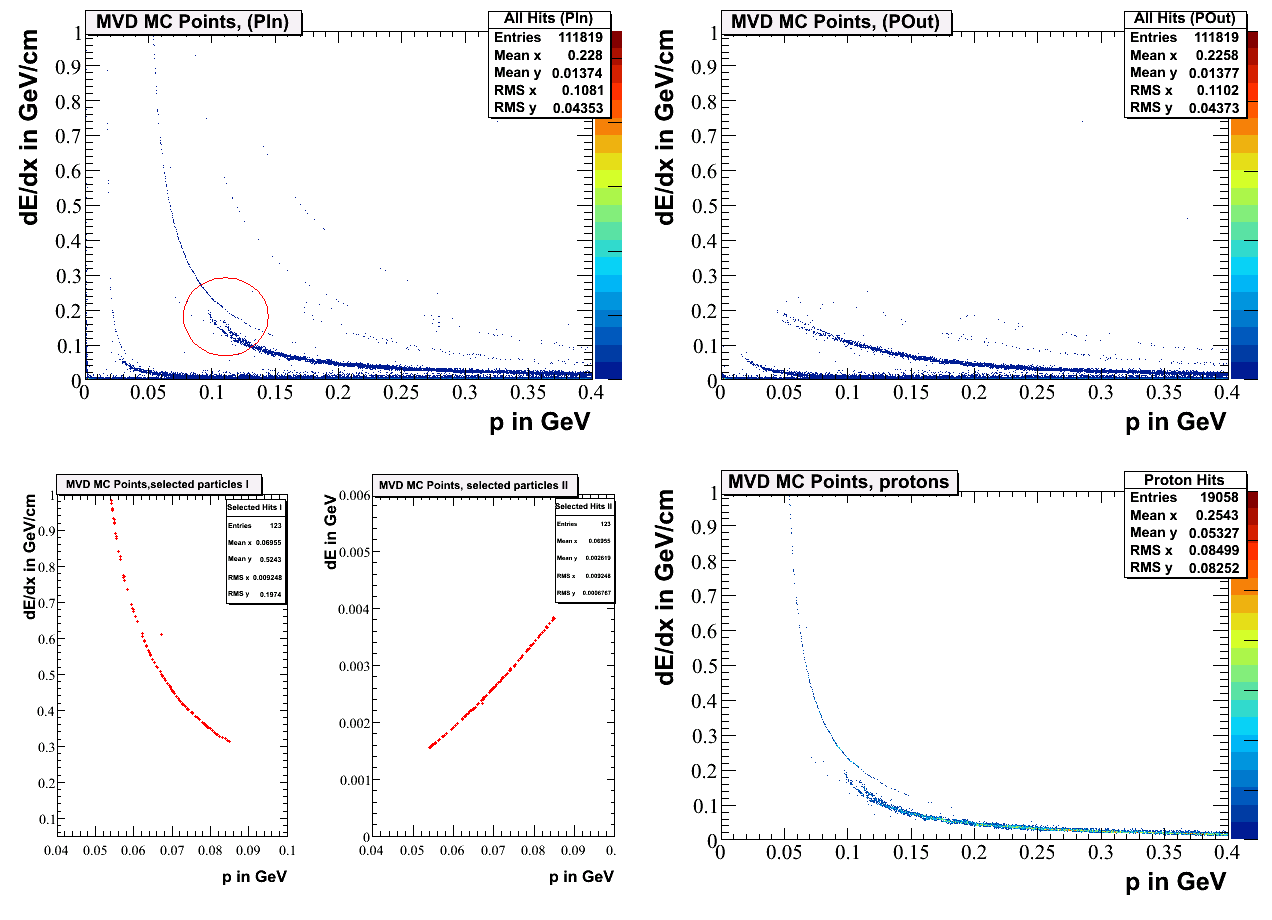

By analysing simulated data of Monte-Carlo points we noticed strange diruptions of the Bethe-Bloch graphs. This happend by using Geant3 and also by using Geant4. To get to know if the hits above and beneath the disruption are part of the same Bethe-Bloch graph we seperated the hits above and checked the Pdg-Code (wtih the help of the CbmMcTrack). The result is that all hits are part of the Bethe-Bloch graph for protons. To verify this we also printed only the hits of protons.
We used the momentum the particles have by entering the detectormaterial. If you use the momentum on the other side of the detectormaterial the hits above the disruption are missing, because the momentum was set to zero (because the particle was stuck in the material).
|
So after all this is nothing to worry about, since this represents the stopped particles. I just wanted to inform you.
Ralf
-
Attachment: Kante.gif
(Size: 43.24KB, Downloaded 1649 times)
[Updated on: Thu, 14 February 2008 15:07] Report message to a moderator |
|
|
|
