Weird STT reconstruction: efficiency depends on charge [message #5647] Wed, 16 January 2008 19:03 Go to previous message
Andrew Savchenko is currently offline  Andrew Savchenko
Messages: 6
Registered: January 2008
occasional visitor
From: *ikp.kfa-juelich.de
Hello all,

I'm studying the possibility of excited hyperon states decay reconstruction using Straw Tracker. I found a strange behavior while reconstructing particles of different charge:
1) polar angle (theta) is not reconstructed for large amount of events;
2) theta for negatively charged particles reconstructed significantly better than for the positively charged ones.

Just for check and to be sure it is not an error in my code, I generated kaons with BoxGenerator using fixed 1.0 GeV/c momentum, fixed 20 degrees polar angle and free azimuth angle (range from 0 to 360).

Results are in the attachments. As you can see, there are a lot of events with unknown polar angle (i.e. 90 degrees, it is just default angle in the reconstruction software). Nevertheless in the k- distribution one can see a peak about 20 degrees, but in the k+ distribution there is only some noise present alongside particles with unidentified angles.

So the question is: is this a bug or I'm doing something wrong?
How this can be fixed? I can see no reason why positively charged particles should be identified worse than negative ones.

For simulation and reconstruction standard marco from pandaroot/macro/stt was used (run.C, rundigi.C and runreco.C)

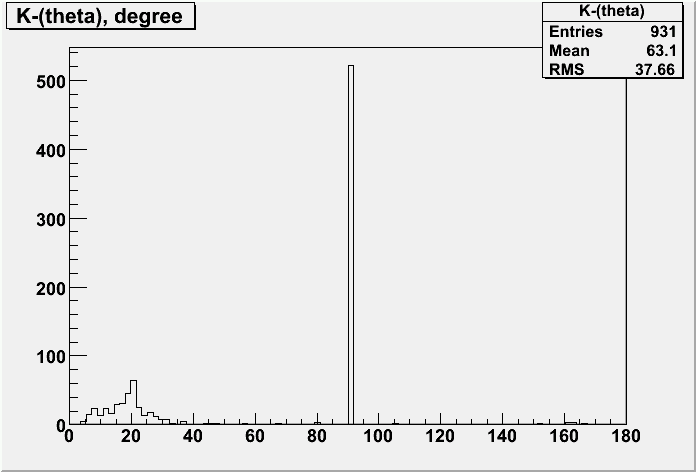

  • Attachment: k-.png
    (Size: 8.72KB, Downloaded 577 times)
  • Attachment: k+.png
    (Size: 10.05KB, Downloaded 585 times)
