Home » PANDA » PandaRoot » Bugs, Fixes, Releases » Energy-Loss in Geant3&4
Energy-Loss in Geant3&4 [message #5517] Wed, 28 November 2007 14:25 Go to next message
Sebastian Neubert is currently offline  Sebastian Neubert
Messages: 282
Registered: March 2006
Location: Munich
first-grade participant
From: *e18.physik.tu-muenchen.de
Hi!

With the stepLimiter switched on there is no Landau-Energy loss anymore... see attached plots:

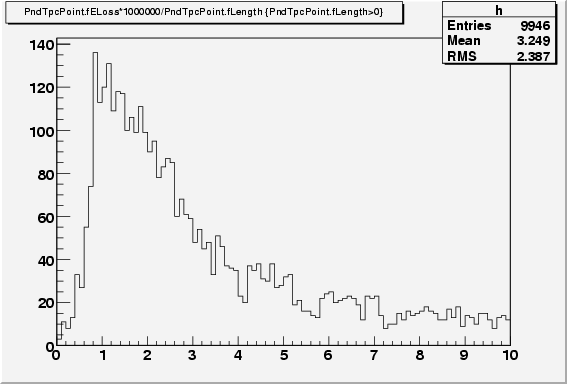

G3:
index.php?t=getfile&id=3986&private=0

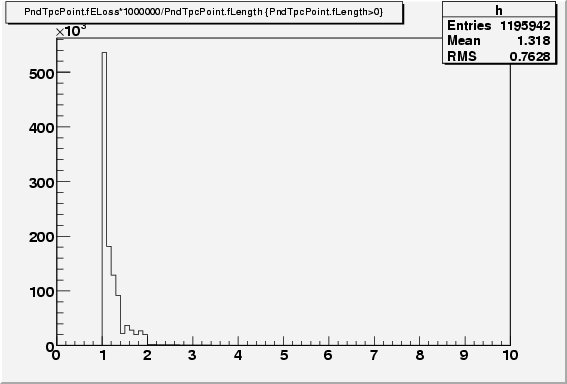

G4:
index.php?t=getfile&id=3987&private=0

Sebastian Neubert
Technische Universität München
Department Physik E18
sneubert@e18.physik.tu-muenchen.de
tel: +49-8928912592

Report message to a moderator

Re: Energy-Loss in Geant3&4 [message #5518 is a reply to message #5517] Wed, 28 November 2007 14:31 Go to previous message
Sebastian Neubert is currently offline  Sebastian Neubert
Messages: 282
Registered: March 2006
Location: Munich
first-grade participant
From: *e18.physik.tu-muenchen.de

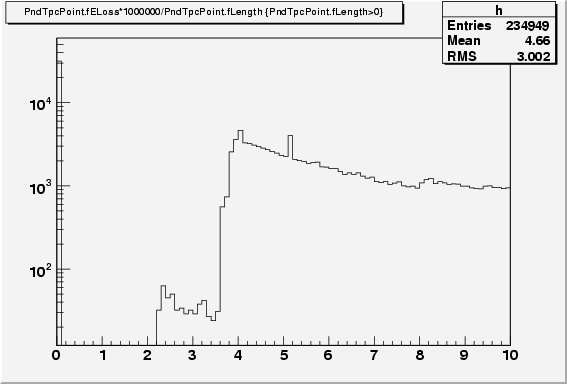

Just for comparison this is how it looks like if I switch off the stepLimiter in G4:

index.php?t=getfile&id=3988&private=0

Sebastian Neubert
Technische Universität München
Department Physik E18
sneubert@e18.physik.tu-muenchen.de
tel: +49-8928912592

Report message to a moderator
