emc data flow diagram [message #5350]

Thu, 01 November 2007 20:16

Dima Melnychuk
Messages: 213
Registered: April 2004
Location: National Centre for Nucle...

first-grade participant

From: *fuw.edu.pl

Hi all,

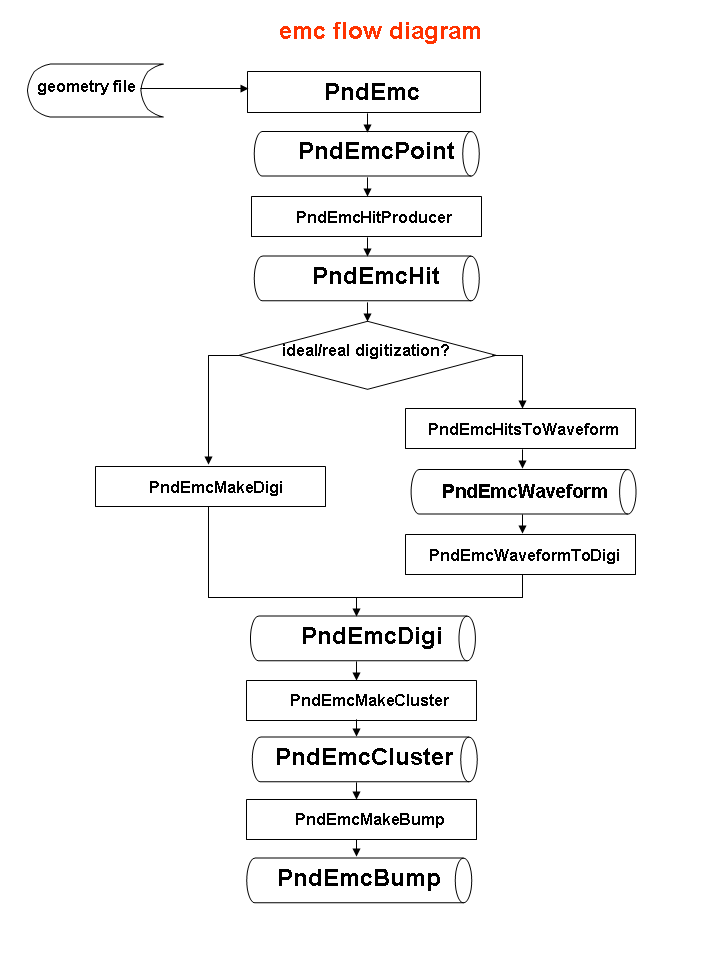

please find simple emc data flow diagram.

And in connection whith this I have one comment.
On last EVO meeting it was discussed what the object should be produced as the result of each subdetector reco - PndXxxRecoHit. So for emc it should be PndEmcRecoHit.

One of the tasks missing in pandaroot emc code (and it is implemented in Panda emc code in Babar framework) is energy and coordinate correction of the cluster as the function of energy and angle. And I suppose that this task can be a step between PndEmcBump and PndEmcRecoHit.

But I do not think that it will be implemented in nearest 1 week, i.e. for "pandaroot v2.0".

So should it be implemented an empty PndEmcBump to PndEmcRecoHit convertor now or can it be postponed?

Best regards,

Dima index.php?t=getfile&id=3935&private=0

Attachment: emc_data_flow.ppt
(Size: 22.50KB, Downloaded 556 times)
Attachment: emc_data_flow.bmp
(Size: 675.30KB, Downloaded 1305 times)
