PID selection [message #21760]

Fri, 10 November 2017 11:17

Jennifer Pütz
Messages: 47
Registered: April 2015
Location: FZ Juelich

continuous participant

From: *ext.kfa-juelich.de

Hi all,

I am working on a comparison for ideal and realistic PID with a small sample of DPM events. I observed that the reconstruction efficiencies are the same for ideal PID and the PID selection criterion „ALL" (see attached file), which is strange to me. I also checked the other criteria and they seem to work fine.

Has anyone of you an idea what causes this equality? If I am not wrong in my understanding of the selection criteria, „ALL" and ideal should not be equal, right?

Cheers
Jenny

PS.: I use on my machine:

FairRoot: v17-03
FairSoft: may16p1
PandaRoot trunk rev.: 30202

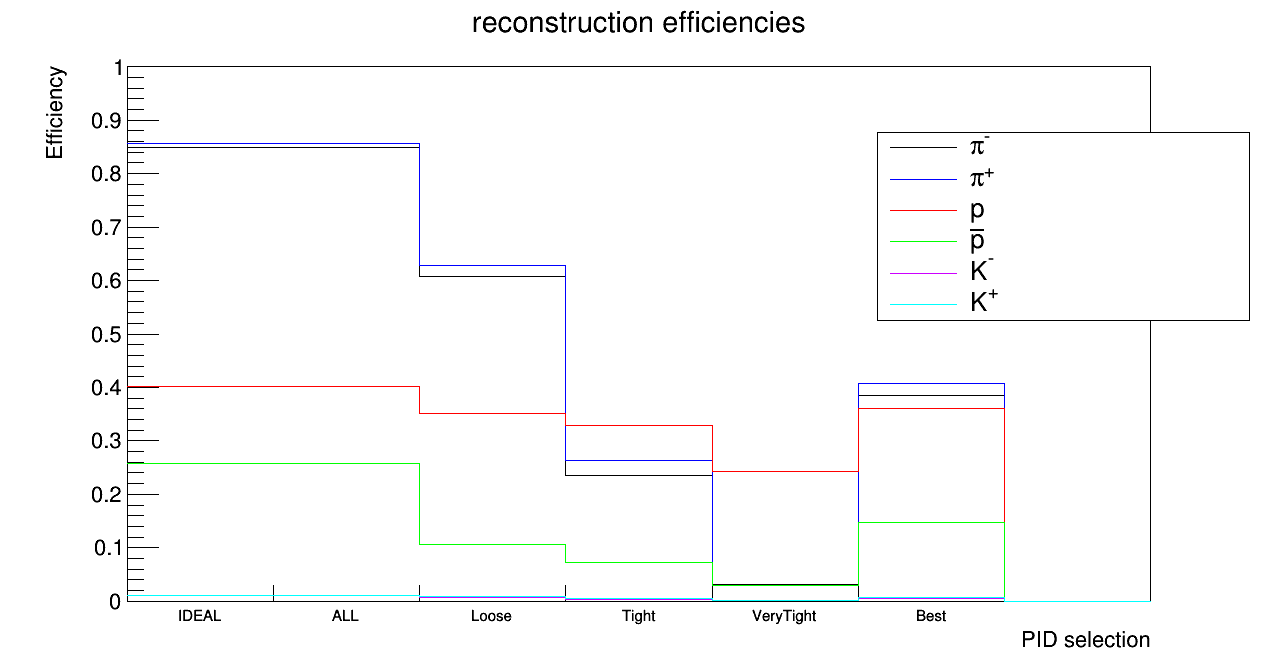

Attachment: comparison_PID_FS.png
(Size: 15.27KB, Downloaded 954 times)

Report message to a moderator

Re: PID selection [message #21761 is a reply to message #21760]

Fri, 10 November 2017 11:57

Ralf Kliemt
Messages: 508
Registered: May 2007
Location: GSI, Darmstadt

first-grade participant

From: *gsi.de

Hi Jennifer,

Ideal only selects the ideal PID values. I.e. the right particle will have values of "1" and the rest "0". You would have to specify at least "Loose", too in order (to cut above 0.2). The default is "VeryLoose" which ist no cut at all.

Cheers!
Ralf

Report message to a moderator

Re: PID selection [message #21778 is a reply to message #21760]

Tue, 14 November 2017 10:30

Jennifer Pütz
Messages: 47
Registered: April 2015
Location: FZ Juelich

continuous participant

From: *dip0.t-ipconnect.de

Hi Ralf,

thank you for your answer. Up to know, I though the selection criteria are not affecting the selection for ideal PID. But this could of course not be true for "ALL".

Cheers,

Jenny

Report message to a moderator
