Setting target type in master macros [message #19387]

Mon, 25 July 2016 14:23

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: *to.infn.it

Dear all,
now you can switch between different options of target in your simulation macros.
After your PndMasterRunSim initialization, you can add the following function:

PndMasterRunSim *fRun = new PndMasterRunSim();
...
fRun->SetTargetMode(XXX);

Where XXX is an integer number and can be:

0 - No IP smearing (default)
1 - Cluster Jet
2 - Pellet target
3 - Pellet Tracking target

This will change the shape of your interaction point. The numbers are extracted from the Target TDR.

Report message to a moderator

Re: Setting target type in master macros [message #19388 is a reply to message #19387]

Mon, 25 July 2016 14:30

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: *to.infn.it

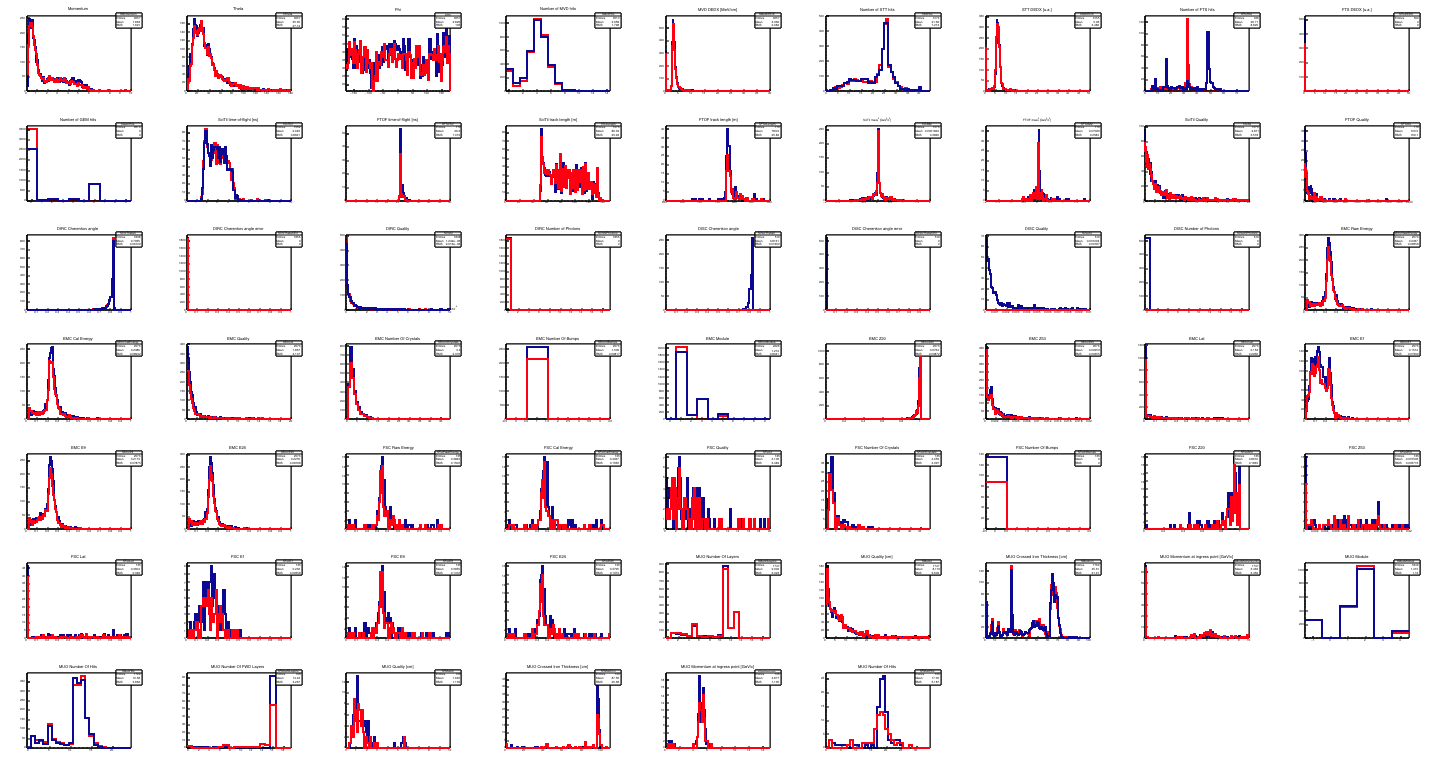

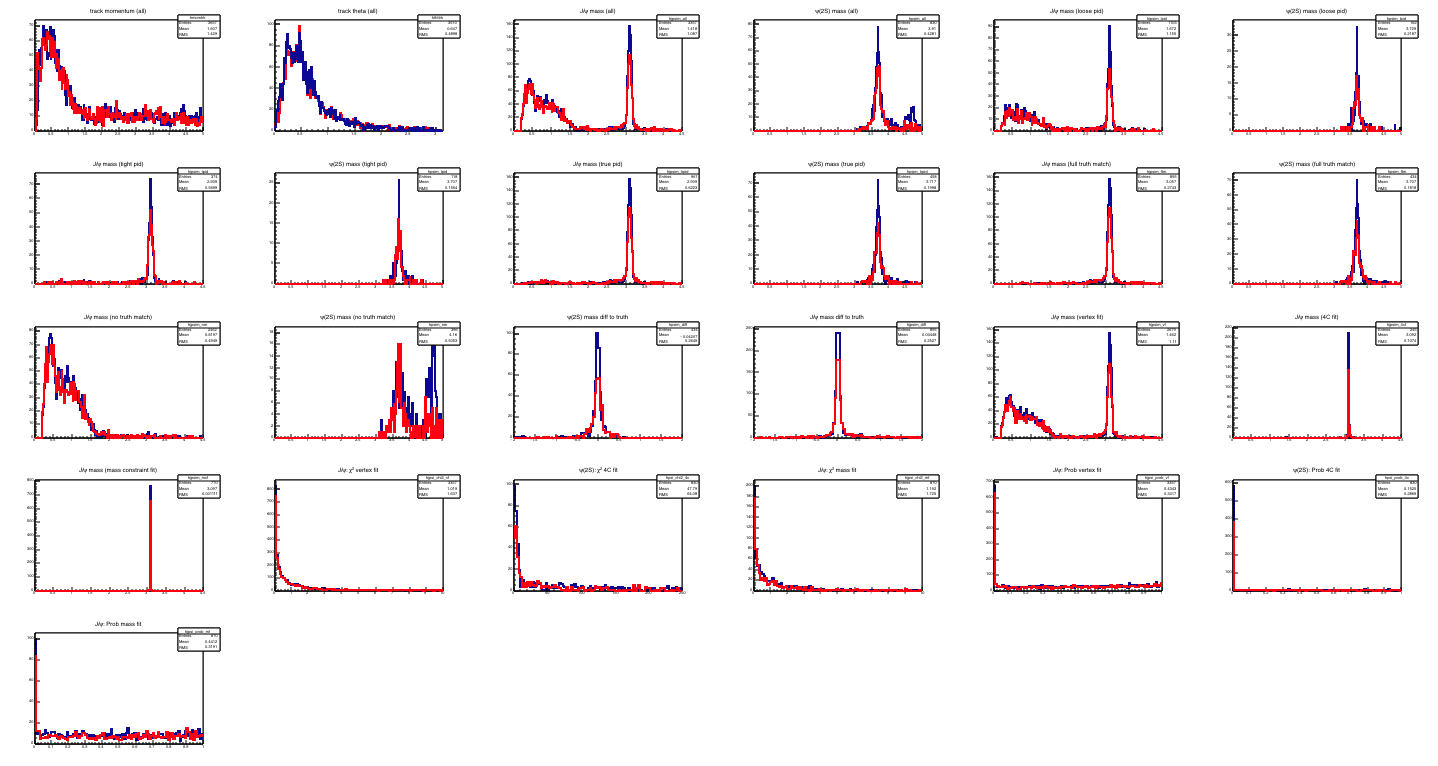

Some plots comparing full setup (blue) and day1 (red) setup.
index.php?t=getfile&id=8732&private=0

Attachment: comp_complete.gif
(Size: 50.29KB, Downloaded 1150 times)
Attachment: comp_pid.gif
(Size: 72.83KB, Downloaded 959 times)

Report message to a moderator
