Bremsstrahlung and neutrals mergeing [message #16522]

Tue, 06 May 2014 14:18

Klaus Götzen
Messages: 293
Registered: June 2006
Location: GSI

first-grade participant

From: *gsi.de

Hi all,

I just wanted to inform you that I implemented a neutral (cluster) mergeing and bremsstrahlung losses for electrons in the Fast Sim in trunk and scrut14. As default these features are switched off and have to be enabled in the fast sim macro with

// enable the merging of neutrals if they have similar direction
fastSim->MergeNeutralClusters();

// enable bremsstahlung loss for electrons
fastSim->EnableElectronBremsstrahlung();

The parametrization for the cluster mergeing was motivated by Ronalds talk (see https://panda-wiki.gsi.de/foswiki/pub/Computing/Minutes28April2014/evo14 0428RK.pdf) to roughly match the efficiency on page 11.

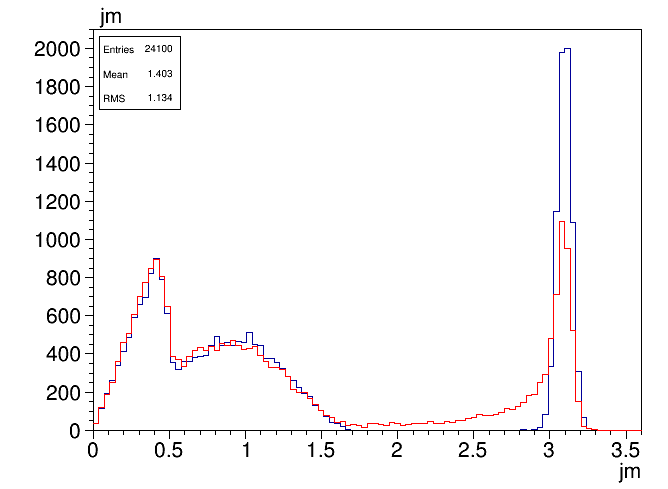

The following plot shows the J/psi -> e+ e- mass distribution (from psi'->J/psi pi+ pi- events) without (blue) and with (red) bremsstrahlung:
index.php?t=getfile&id=7845&private=0

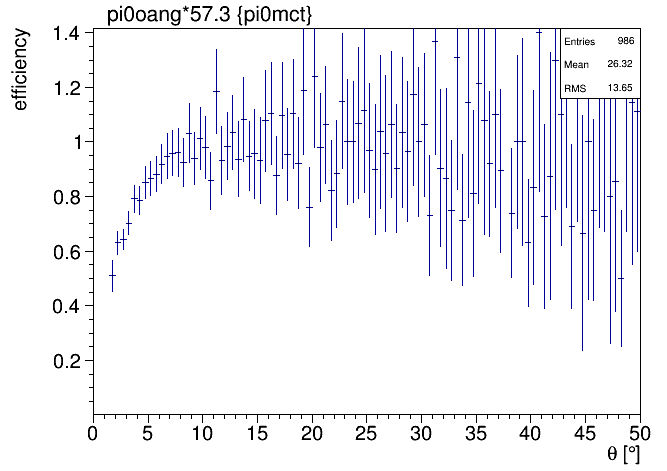

This plot shows the pi0 reco efficiency depending on the opening angle (here from pbarp -> pi+ pi- pi0 events):
index.php?t=getfile&id=7846&private=0

You might give it a try and check, whether it behaves like expected. In case of your positive feedback we can also enable the features as default.

Best,
Klaus

Attachment: j2e_brems.gif
(Size: 8.06KB, Downloaded 1197 times)
Attachment: pi0_merge.gif
(Size: 12.22KB, Downloaded 1096 times)

Report message to a moderator

[Message index]

		Bremsstrahlung and neutrals mergeing By: Klaus Götzen on Tue, 06 May 2014 14:18
		Re: Bremsstrahlung and neutrals mergeing By: Elisa Fioravanti on Wed, 07 May 2014 13:43
		Re: Bremsstrahlung and neutrals mergeing By: Klaus Götzen on Wed, 07 May 2014 13:57
		Re: Bremsstrahlung and neutrals mergeing By: StefanoSpataro on Wed, 07 May 2014 13:59
		Re: Bremsstrahlung and neutrals mergeing By: Klaus Götzen on Wed, 07 May 2014 14:22
		Re: Bremsstrahlung and neutrals mergeing By: Ralf Kliemt on Wed, 07 May 2014 15:30
		Re: Bremsstrahlung and neutrals mergeing By: Elisa Fioravanti on Wed, 07 May 2014 15:46
