Influence of the reduced B-field on the track reconstruction [message #16019]

Sat, 22 March 2014 00:50

donghee
Messages: 385
Registered: January 2009
Location: Germnay

first-grade participant

From: *dip0.t-ipconnect.de

Hi Stefano,

I try to see the effect of reduced B-field, which was intensively discussed during this week.

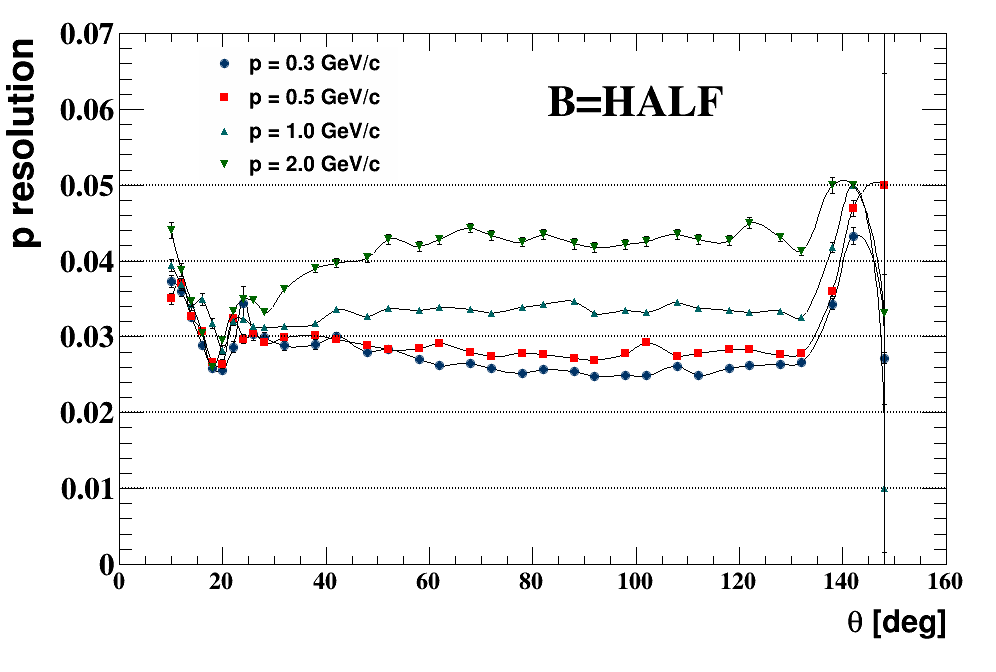

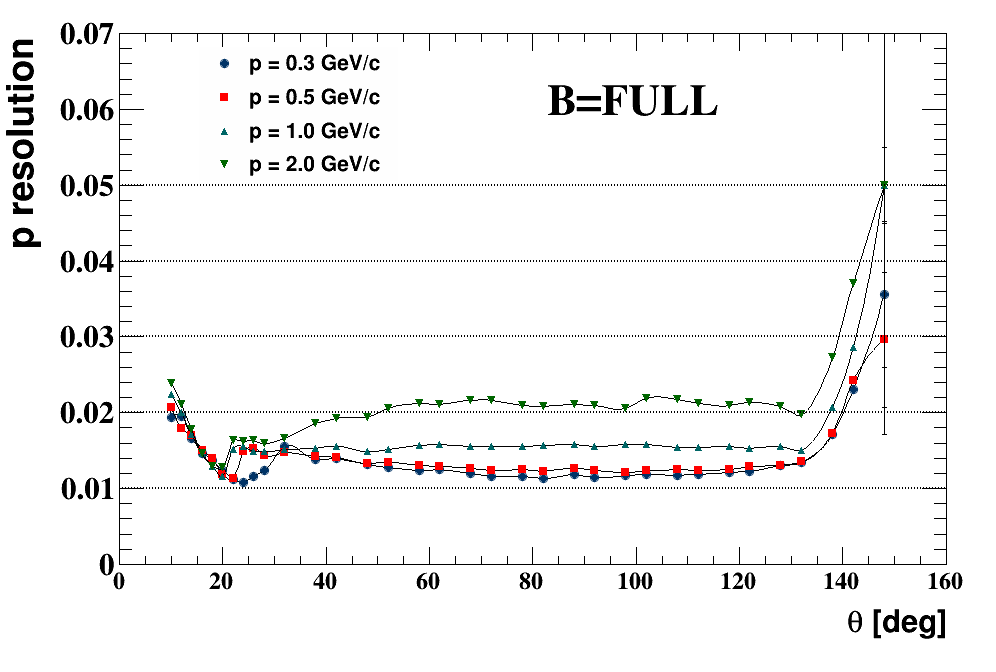

Two plots are produced to compare the momentum resolution with two diffrent field map configurations for "FULL" and "HALF".
Simulation has been made with single Muon particle with momentum range starting from 0.3 GeV upto 2 GeV, and scan theta between 10 and 148 degree.
PANDAroot Jan14 has been used and simulation codes are attached to cross check.
The pull distributions of momentum for p=0.3 GeV and both Half and Full field map configurations cases are also attached to make sure the fit procedure. (Gauss+Pol(3) has been used.)

The momentum resolution with half field map is factor 2 times worser than FULL field map.
If you want to check the analysis code, please let me know, I will send you.

Best wishes,
Donghee

index.php?t=getfile&id=7769&private=0

Attachment: run_pid_dig.C
(Size: 4.61KB, Downloaded 379 times)
Attachment: run_pid_pid.C
(Size: 3.64KB, Downloaded 383 times)
Attachment: run_pid_rec.C
(Size: 5.42KB, Downloaded 370 times)
Attachment: run_pid_sim.C
(Size: 7.50KB, Downloaded 357 times)
Attachment: resolution_B_half_03.pdf
(Size: 113.66KB, Downloaded 371 times)
Attachment: resolution_B_full_03.pdf
(Size: 108.46KB, Downloaded 346 times)
Attachment: summary_for_B_full.pdf
(Size: 20.00KB, Downloaded 353 times)
Attachment: summary_for_B_full.png
(Size: 25.70KB, Downloaded 785 times)
Attachment: summary_for_B_half.pdf
(Size: 24.03KB, Downloaded 343 times)
Attachment: summary_for_B_half.png
(Size: 28.20KB, Downloaded 713 times)

[Updated on: Sat, 22 March 2014 00:53]
