Influence of the reduced B-field on the track reconstruction [message #16019]

Sat, 22 March 2014 00:50

donghee
Messages: 385
Registered: January 2009
Location: Germnay

first-grade participant

From: *dip0.t-ipconnect.de

Hi Stefano,

I try to see the effect of reduced B-field, which was intensively discussed during this week.

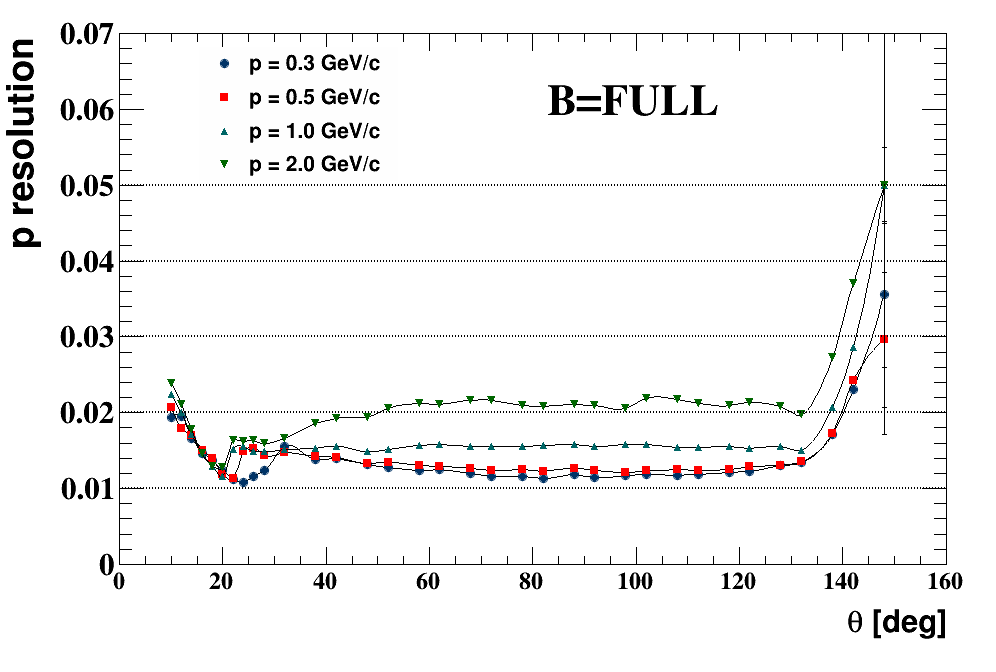

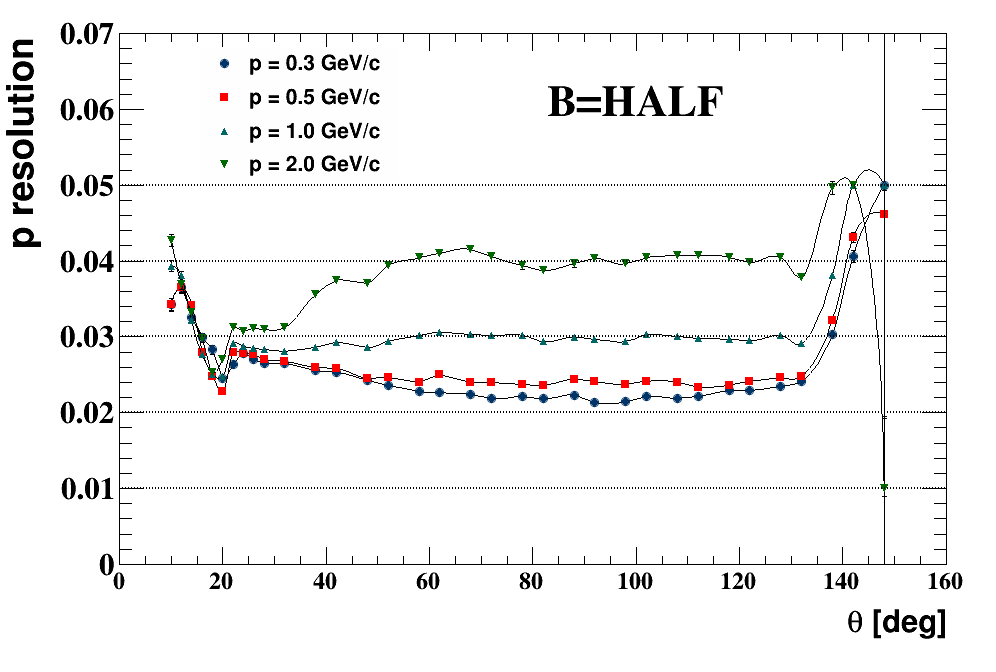

Two plots are produced to compare the momentum resolution with two diffrent field map configurations for "FULL" and "HALF".
Simulation has been made with single Muon particle with momentum range starting from 0.3 GeV upto 2 GeV, and scan theta between 10 and 148 degree.
PANDAroot Jan14 has been used and simulation codes are attached to cross check.
The pull distributions of momentum for p=0.3 GeV and both Half and Full field map configurations cases are also attached to make sure the fit procedure. (Gauss+Pol(3) has been used.)

The momentum resolution with half field map is factor 2 times worser than FULL field map.
If you want to check the analysis code, please let me know, I will send you.

Best wishes,
Donghee

index.php?t=getfile&id=7769&private=0

Attachment: run_pid_dig.C
(Size: 4.61KB, Downloaded 455 times)
Attachment: run_pid_pid.C
(Size: 3.64KB, Downloaded 453 times)
Attachment: run_pid_rec.C
(Size: 5.42KB, Downloaded 444 times)
Attachment: run_pid_sim.C
(Size: 7.50KB, Downloaded 425 times)
Attachment: resolution_B_half_03.pdf
(Size: 113.66KB, Downloaded 442 times)
Attachment: resolution_B_full_03.pdf
(Size: 108.46KB, Downloaded 421 times)
Attachment: summary_for_B_full.pdf
(Size: 20.00KB, Downloaded 424 times)
Attachment: summary_for_B_full.png
(Size: 25.70KB, Downloaded 1084 times)
Attachment: summary_for_B_half.pdf
(Size: 24.03KB, Downloaded 423 times)
Attachment: summary_for_B_half.png
(Size: 28.20KB, Downloaded 947 times)

[Updated on: Sat, 22 March 2014 00:53]

Report message to a moderator

Re: Influence of the reduced B-field on the track reconstruction [message #16020 is a reply to message #16019]

Sat, 22 March 2014 11:51

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: *ip71.fastwebnet.it

Hi,
the field maps are now in svn but the central tracking code is still not changed, since the field there is hardcoded and not retrieved from field maps. In this sense, maybe you can try to use ideal tracking to compare momentum resolution, but not real (for the moment).
Most of the effects of a reduced field would be a worsen in resolution but an increase in acceptance/efficiency for low momentum particles, but this cannot be checked before the tracking code is not updated. I am not sure if also the analysis tools should be updated.

Report message to a moderator

Re: Influence of the reduced B-field on the track reconstruction [message #16021 is a reply to message #16019]

Sun, 23 March 2014 20:48

Gianluigi Boca
Messages: 177
Registered: March 2004

first-grade participant

From: *pv.infn.it

Hi Donghee,
I put in svn a new version of the Pattern Recognition class PndTrkTracking2.cxx and .h;
the field now is not hardcoded anymore (set at 2 Tesla) but rather extracted using

FairRunAna::Instance()->GetField()

(thanks Stefano for giving me the recipe).
Therefore now the momentum values obtained from Pattern Recognition and given as input to the Kalman filter are correct for every magnetic field you use.

Please rerun your Macro and see wht happens now

Gianluigi

Donghee Kang wrote on Sat, 22 March 2014 00:50

Hi Stefano,

I try to see the effect of reduced B-field, which was intensively discussed during this week.
Two plots are produced to compare the momentum resolution with two diffrent field map configurations for "FULL" and "HALF".
Simulation has been made with single Muon particle with momentum range starting from 0.3 GeV upto 2 GeV, and scan theta between 10 and 148 degree.
PANDAroot Jan14 has been used and simulation codes are attached to cross check.
The pull distributions of momentum for p=0.3 GeV and both Half and Full field map configurations cases are also attached to make sure the fit procedure. (Gauss+Pol(3) has been used.)

The momentum resolution with half field map is factor 2 times worser than FULL field map.
If you want to check the analysis code, please let me know, I will send you.

Best wishes,
Donghee

Report message to a moderator

Re: Influence of the reduced B-field on the track reconstruction [message #16041 is a reply to message #16021]

Tue, 25 March 2014 14:40

donghee
Messages: 385
Registered: January 2009
Location: Germnay

first-grade participant

From: *kph.uni-mainz.de

Hi Gianluigi,

Thank you for your kind update
Introduced new code of the Pattern Recognition class PndTrkTracking2.cxx and .h has been exchanged and run again
Here is the output with new code.
index.php?t=getfile&id=7773&private=0

The improvement is a level of few %, not so significant.
I assume that the reduced field map has lower performance than full field map, that should be a natural feature due to small bending power of produced particle inside solenoid field.
It would be great to check again same study with an important physics channel analysis.

Best wishes,
Donghee

Attachment: new_summary_for_B_half.pdf
(Size: 21.55KB, Downloaded 358 times)
Attachment: new_summary_for_B_half.png
(Size: 27.47KB, Downloaded 876 times)

Report message to a moderator

Re: Influence of the reduced B-field on the track reconstruction [message #16055 is a reply to message #16041]

Tue, 25 March 2014 18:01

Gianluigi Boca
Messages: 177
Registered: March 2004

first-grade participant

From: *pv.infn.it

Hi Donghee,
so thanks for checking again with the last version of the code.
Having a worse resolution with half the B field is expected on general arguments in magnetic field.

For instance, in the case of an experiment in which tracking is done with normal planar multiwire chambers
and a dipole it is not difficult to show that

Sigma(p)/p = K* Sigma(theta) *p / B

where :
K = constant
Sigma(theta) = error on the bending angle theta ;
p = momentum;
B = magnetic field.

So the fact that you obtain a resolution a factor 2 worse when you use only half of B is in
agreement with what expected

cheers Gianluigi

Donghee Kang wrote on Tue, 25 March 2014 14:40

Hi Gianluigi,

Thank you for your kind update
Introduced new code of the Pattern Recognition class PndTrkTracking2.cxx and .h has been exchanged and run again
Here is the output with new code.

The improvement is a level of few %, not so significant.
I assume that the reduced field map has lower performance than full field map, that should be a natural feature due to small bending power of produced particle inside solenoid field.
It would be great to check again same study with an important physics channel analysis.

Best wishes,
Donghee

Report message to a moderator

Re: Influence of the reduced B-field on the track reconstruction [message #16056 is a reply to message #16055]

Tue, 25 March 2014 18:03

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: *to.infn.it

I think it would be interesting to check the effect on the efficiency for low momentum particles.

Report message to a moderator

Re: Influence of the reduced B-field on the track reconstruction [message #16218 is a reply to message #16056]

Thu, 03 April 2014 17:06

MartinJGaluska
Messages: 203
Registered: March 2010
Location: Germany

first-grade participant

From: *physik.uni-giessen.de

Hello,

I am pretty sure that this is the case as it has to deal with a variable and inhomogeneous magnetic field in the Forward Tracker, but just to be sure I ask:
Does the Kalman filter read the magnetic field from the field maps?

Kind regards,
Martin

Report message to a moderator

Re: Influence of the reduced B-field on the track reconstruction [message #16219 is a reply to message #16218]

Thu, 03 April 2014 17:07

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: 93.48.231*

Sure!

Report message to a moderator
