| Using RKTrackRep in the Kalman [message #15002] |
Tue, 23 July 2013 15:51  |
StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino
|
first-grade participant |
From: 2.235.190*
|
|
Dear all,
I added the possibility to use different track representations in the Kalman Filter/Daf.
By default GeaneTrackRep is used (tracrep = 0).
If you modify your reco macro adding the following line:
recoKalman->SetTrackRep(1);
you can use RKTrackRep (tracrep = 1).

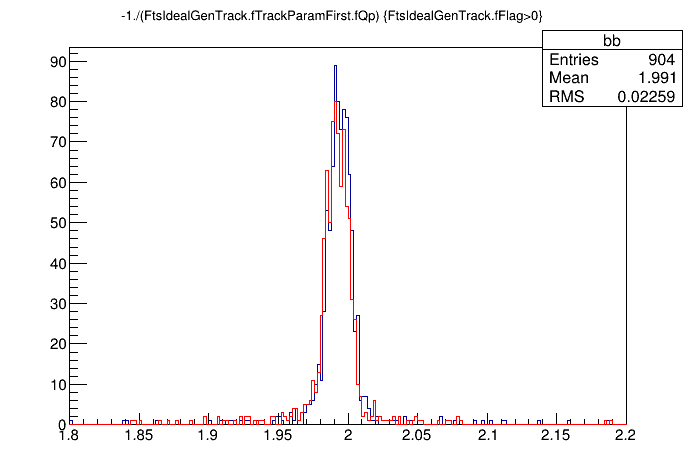

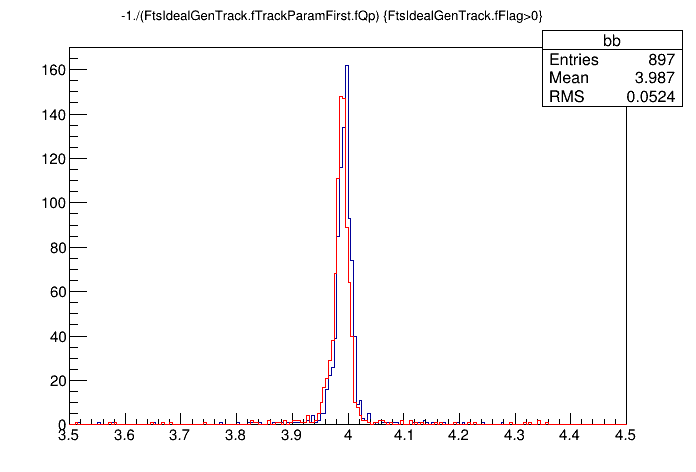

I have done quick studies simulating 1000 muons in the central tracker ( 20° < theta < 120°), mvd+stt+gem.

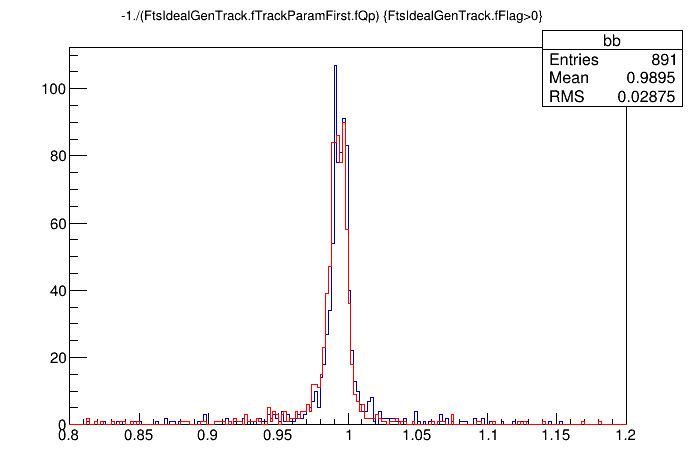

At 1 GeV/c, reconstructed momentum distribution (red GeaneTrackRep, blue RKTrackRep):
At 0.5 GeV/c, reconstructed momentum distribution (red GeaneTrackRep, blue RKTrackRep):
The results are similar, then the track representation seems to work. The results are better for GeaneTrackRep.
I did not check yet the forward tracking.
-
Attachment: comp1.gif
(Size: 8.12KB, Downloaded 682 times)
-
Attachment: comp05.gif
(Size: 7.82KB, Downloaded 630 times)
|
|
|
|
|
|
