Muon tracking in forward spectrometer [message #14595]

Tue, 09 April 2013 01:15

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: *vpn.unito.it

Dear all,
I have implemented a fast tracking algorithm for the muon detector in the forward spectrometer.
I have tested it with muons (red) and pions (blue) at 5 GeV/c, just to be sure that it is working.

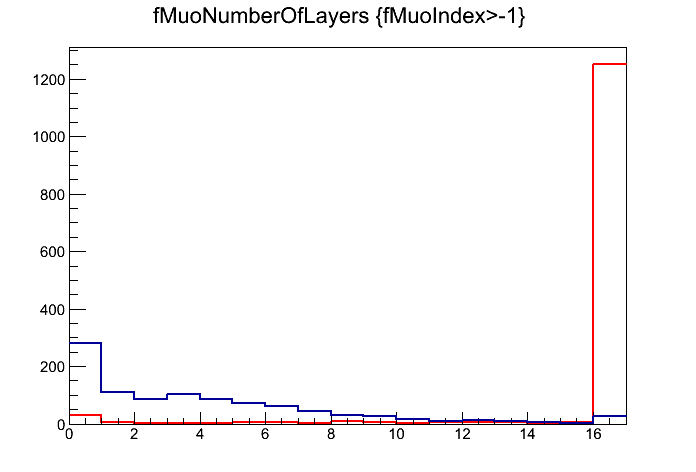

In the following plots you can see the distribution of number of mdt layers:

index.php?t=getfile&id=7333&private=0

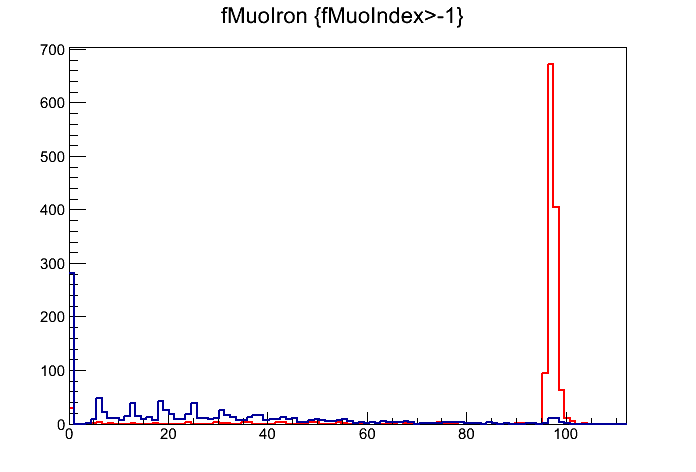

the amount of iron crossed by the particle:

index.php?t=getfile&id=7334&private=0

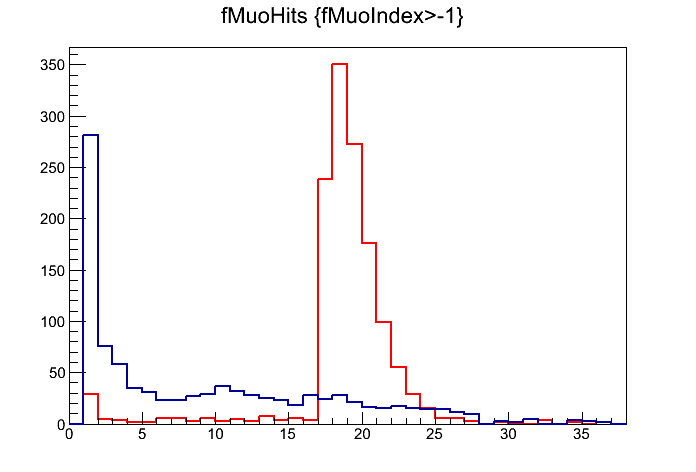

and the number of mdt hits inside a broad correlation window:

index.php?t=getfile&id=7335&private=0

It seems to work, now we can do muon identification for the whole spectrometer.

However improvements in the correlation window and checks at other momenta should be performed. Guinea's pigs are welcome Smile

Attachment: fMuoNumberOfLayers.gif
(Size: 5.45KB, Downloaded 1375 times)
Attachment: fMuoIron.gif
(Size: 5.80KB, Downloaded 1248 times)
Attachment: fMuoHits.gif
(Size: 6.40KB, Downloaded 1296 times)
