[FIXED] Beam pipe valves? [message #14477]

Tue, 05 March 2013 12:09

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: *to.infn.it

Dear all,

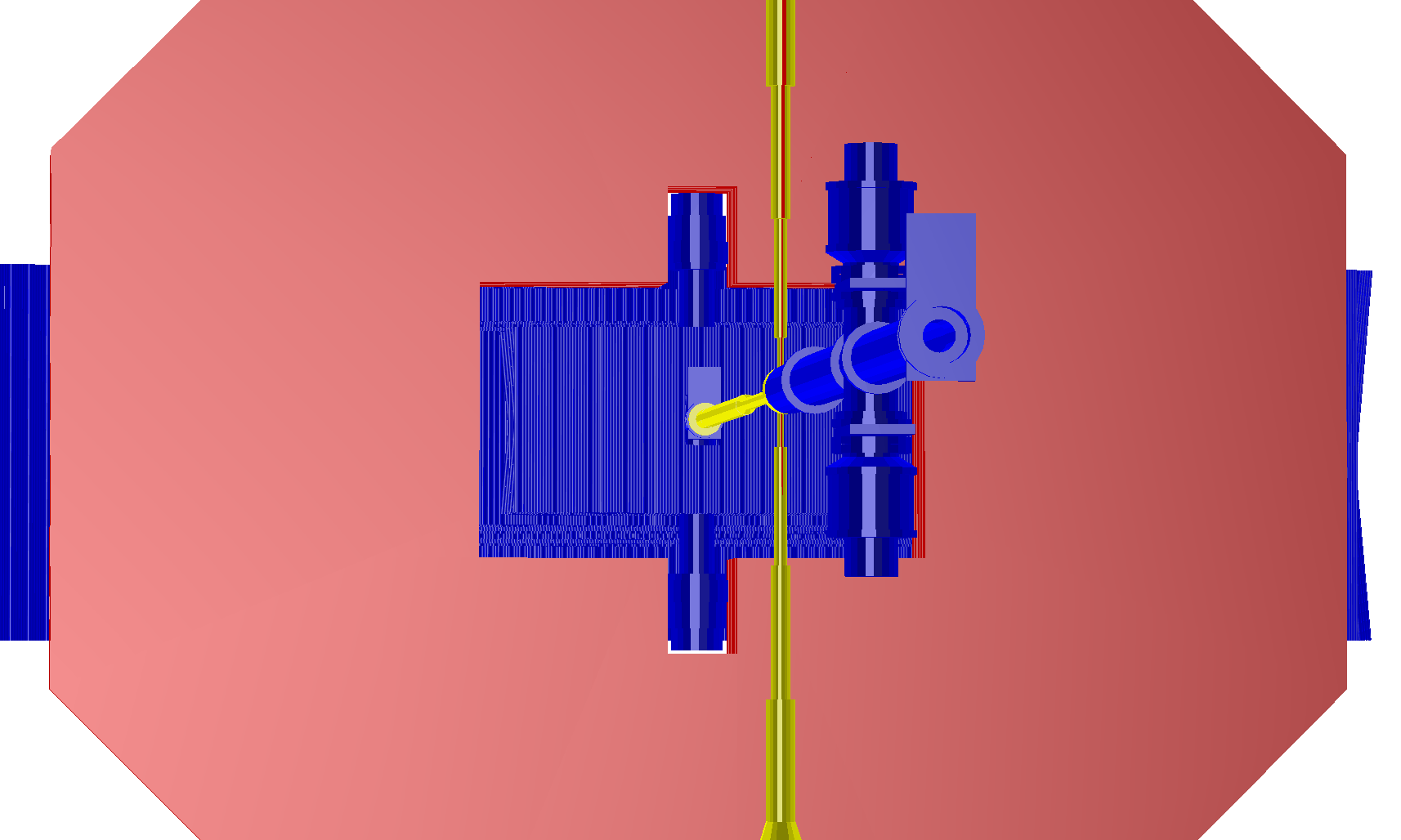

today I plotted the PANDA geometry and I have seen something strange:

index.php?t=getfile&id=7302&private=0

In the OGL drawing you can see that the pipe has a sort of "tower" which is in the middle of the muon filter. I am wondering what is wrong there, if the "tower" should be really there, if maybe the muon filter should me modified to host it, or if maybe we have some geometry problems.

Waiting for the experts' comments...

Attachment: viewer.gif
(Size: 196.87KB, Downloaded 1082 times)

[Updated on: Tue, 19 March 2013 18:53]

Report message to a moderator

Re: Beam pipe valves? [message #14478 is a reply to message #14477]

Tue, 05 March 2013 12:36

Prometeusz Jasinski
Messages: 34
Registered: January 2012

continuous participant

From: *kph.uni-mainz.de

Indeed, this is the first pumping station downstream of the target. The description corresponds to what is to be found on EDMS since several years. So I guess that muon description is not up to date?
