eta_c reconstruction efficiency [message #12702]

Thu, 06 October 2011 12:01

Dima Melnychuk
Messages: 213
Registered: April 2004
Location: National Centre for Nucle...

first-grade participant

From: *fuw.edu.pl

Hi,

I tried to localize the source of the problem with eta_c reconstruction efficiency and compared simulation with trunk version of pandaroot and then replaced only PndSttMvdTracking.cxx, PndSttMvdTracking.h to the version corresponding to july11 release, i.e PndSttMvdTracking.cxx (rev.12530) PndSttMvdTracking.h (rev. 12558).

Running simulation with 3000 events with trunk version I have efficiency 14.1%.

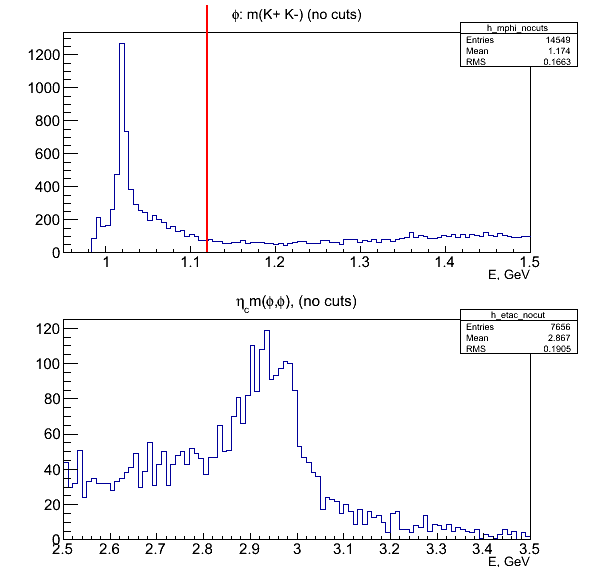

Mass distributions without any cuts:
index.php?t=getfile&id=6652&private=0

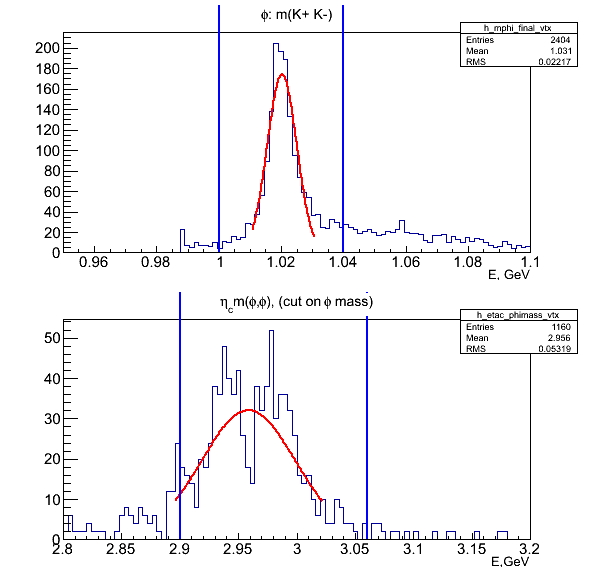

and final plot after vertex fit
index.php?t=getfile&id=6653&private=0

For the version with replaced PndSttMvdTracking efficiency is 26.2%

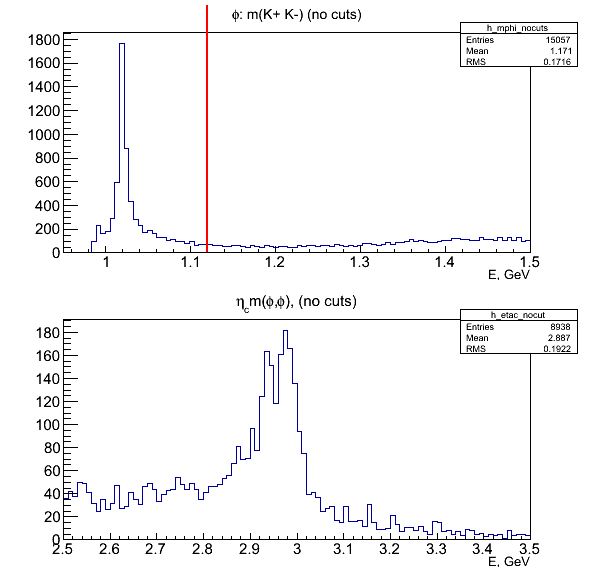

and mass distributions without any cuts:
index.php?t=getfile&id=6654&private=0

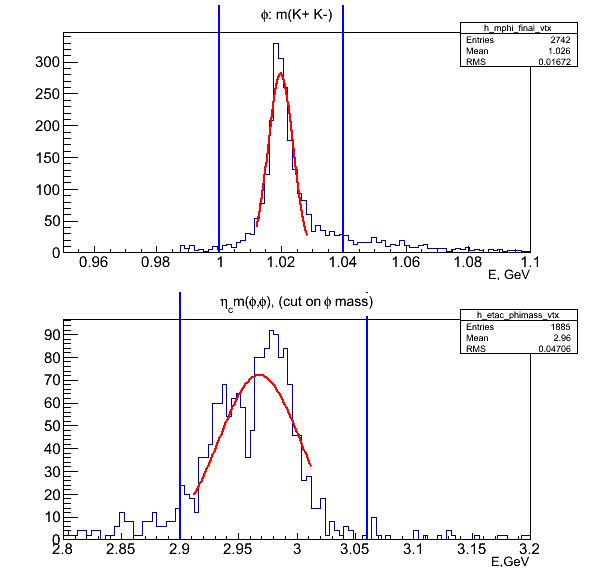

and final mass plots after vertex fit:
index.php?t=getfile&id=6655&private=0

Here the reconstruction efficiency is a factor 2 better.

Reconstructed events are the same for both cases. Final eta_c mass distribution has double peak structure but it appears for both cases and I suppose it's a question of statistics.

So as a conclusion the hole problem is related to PndSttMvdTracking class only. I will try to localize the problem further but the code is too big and I suppose that Gianluigi will be better at it than me.

Dima

Attachment: mass_nocuts_trunk.png
(Size: 13.08KB, Downloaded 1437 times)
Attachment: mass_final_trunk.png
(Size: 14.69KB, Downloaded 1412 times)
Attachment: mass_nocuts_july11.png
(Size: 14.53KB, Downloaded 1412 times)
Attachment: mass_final_july11.png
(Size: 14.86KB, Downloaded 1473 times)

Report message to a moderator

[Message index]

		eta_c reconstruction efficiency By: Dima Melnychuk on Thu, 06 October 2011 12:01
		Re: eta_c reconstruction efficiency By: Lia Lavezzi on Fri, 07 October 2011 11:19
		Re: eta_c reconstruction efficiency By: Dima Melnychuk on Mon, 17 October 2011 17:24
		Re: eta_c reconstruction efficiency By: StefanoSpataro on Wed, 19 October 2011 18:07
