Home » PANDA » PandaRoot » Tracking » TpcRiemannTrackingTask - ideal PID now working - please rerun reconstruction
| TpcRiemannTrackingTask - ideal PID now working - please rerun reconstruction [message #12411] |
Mon, 01 August 2011 21:58  |
Johannes Rauch
Messages: 41
Registered: September 2010
Location: TUM
|
continuous participant |
From: *natpool.mwn.de
|
|
Dear Pandarooters,
finally we fixed the issues we had with the ideal PID in the RiemannTrackingTask.
You can use ideal pid in the reco macros:
tpcSPR->SetMCPid(); // use ideal particle identification
Please test your reconstruction/analysis macros on a small sample and give feedback.
Then the tpc data on the grid should be reprocessed for the final analysis.
regards,
Johannes
|
|
|
|
|
|
| Re: TpcRiemannTrackingTask - ideal PID now working - please rerun reconstruction [message #12416 is a reply to message #12411] |
Tue, 02 August 2011 11:21  |
Elisa Fioravanti
Messages: 84
Registered: January 2008
|
continuous participant |
From: *fe.infn.it
|
|
Hello,
I have update pandaroot, and I have run the simulation ofr pi+pi- analysis using the macro in /macro/run/tdrct/npipi
I comment out the line
tpcSPR->SetMCPid(); // use ideal particle identification
in the reco macro.
But unfortunately I have this crash:
===== PndPidCorrelator - Event: 822 - Number of tracks for pid 1 - Number of EMC Cluster for pid 27
-W- PndPidCorrelator::GetTrackInfo :: Failed backward propagation
*** Break *** floating point exception
Generating stack trace...
0x06136b40 in PndPidCandidate::PndPidCandidate(PndPidCandidate const&) at /home/fioravanti/fairsoft/pandaroot/pid/PidData/PndPidCandidate.h:31 from /home/fioravanti/fairsoft/buildPanda/lib/libPid.so
0x0612bfd2 in PndPidCorrelator::AddNeutralCandidate(PndPidCandidate*) at /home/fioravanti/fairsoft/pandaroot/pid/PidCorr/PndPidCorrelator.cxx:119 7 from /home/fioravanti/fairsoft/buildPanda/lib/libPid.so
0x061300a0 in PndPidCorrelator::ConstructNeutralCandidate() at /home/fioravanti/fairsoft/pandaroot/pid/PidCorr/PndPidCorrelator.cxx:663 from /home/fioravanti/fairsoft/buildPanda/lib/libPid.so
0x0613137e in PndPidCorrelator::Exec(char const*) at /home/fioravanti/fairsoft/pandaroot/pid/PidCorr/PndPidCorrelator.cxx:540 from /home/fioravanti/fairsoft/buildPanda/lib/libPid.so
0x0027e9e8 in TTask::ExecuteTasks(char const*) + 0x108 from /home/fioravanti/fairsoft/tools/root/lib/libCore.so.5.29
0x0027e3d9 in TTask::ExecuteTask(char const*) + 0x159 from /home/fioravanti/fairsoft/tools/root/lib/libCore.so.5.29
0x02a61d23 in FairRunAna::Run(int, int) at /home/fioravanti/fairsoft/pandaroot/base/FairRunAna.cxx:354 from /home/fioravanti/fairsoft/buildPanda/lib/libBase.so
0x02ac3a38 in <unknown> from /home/fioravanti/fairsoft/buildPanda/lib/libBase.so
0x00c45d7a in Cint::G__ExceptionWrapper(int (*)(G__value*, char const*, G__param*, int), G__value*, char*, G__param*, int) + 0x6a from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00d00786 in G__execute_call + 0x56 from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00d04d3d in G__call_cppfunc + 0x26d from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00cd7628 in G__interpret_func + 0x1458 from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00cc4cf8 in G__getfunction at func.cxx:0 from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00dc591c in G__getstructmem(int, G__FastAllocString&, char*, int, char*, int*, G__var_array*, int) + 0x5fc from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00dbb708 in G__getvariable at var.cxx:0 from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00c98f41 in G__getitem at expr.cxx:0 from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00ca29a9 in G__getexpr at expr.cxx:0 from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00d3638f in G__exec_statement at parse.cxx:0 from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00c8378b in <unknown> from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00c83ac6 in G__exec_tempfile + 0x16 from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x00d47c26 in G__process_cmd at pause.cxx:0 from /home/fioravanti/fairsoft/tools/root/lib/libCint.so.5.29
0x002bb6d3 in TCint::ProcessLine(char const*, TInterpreter::EErrorCode*) + 0x3c3 from /home/fioravanti/fairsoft/tools/root/lib/libCore.so.5.29
0x002bb2ef in TCint::ProcessLineSynch(char const*, TInterpreter::EErrorCode*) + 0x9f from /home/fioravanti/fairsoft/tools/root/lib/libCore.so.5.29
0x002046c2 in TApplication::ExecuteFile(char const*, int*, bool) + 0x752 from /home/fioravanti/fairsoft/tools/root/lib/libCore.so.5.29
0x00204c5c in TApplication::ProcessFile(char const*, int*, bool) + 0x2c from /home/fioravanti/fairsoft/tools/root/lib/libCore.so.5.29
0x002015eb in TApplication::ProcessLine(char const*, bool, int*) + 0x86b from /home/fioravanti/fairsoft/tools/root/lib/libCore.so.5.29
0x00a5b8c4 in TRint::Run(bool) + 0x2e4 from /home/fioravanti/fairsoft/tools/root/lib/libRint.so.5.29
0x08048d93 in main + 0x83 from /home/fioravanti/fairsoft/tools/root/bin/root.exe
0x01204e9c in __libc_start_main + 0xdc from /lib/libc.so.6
0x08048bf1 in __gxx_personality_v0 + 0x65 from /home/fioravanti/fairsoft/tools/root/bin/root.exe
Root >
Thanks,
Elisa
|
|
|
|
| Re: TpcRiemannTrackingTask - ideal PID now working - please rerun reconstruction [message #12419 is a reply to message #12416] |
Tue, 02 August 2011 11:42 |
Felix Boehmer
Messages: 149
Registered: May 2007
Location: Munich
|
first-grade participant |
From: *natpool.mwn.de
|
|
Hi Elisa,
this looks to me like a crash in the FairGeanePro extrapolation inside pid/GetTrackInfo.cxx. Is this another random floating point exception from Geane? Can you verify that, Stefano?
Inside the TPC code we use genfit tracks (instead the PndTracks) and use another track representation (RKTrackRep) for our extrapolations. We had no such problems since then. But this is decoupled from the problem you see.
Cheers
Felix
[Updated on: Tue, 02 August 2011 11:47] Report message to a moderator |
|
|
|
|
|
| Re: TpcRiemannTrackingTask - ideal PID now working - please rerun reconstruction [message #12422 is a reply to message #12421] |
Tue, 02 August 2011 13:03 |
Sverre Dørheim
Messages: 23
Registered: October 2008
Location: Munich
|
occasional visitor |
From: *natpool.mwn.de
|
|
Hi Lia
I implemented the fix you proposed, this makes the pid-macro crash at a later event with the following stack trace. This points towards geane, as it crashed during propagation using geane.
Best regards
Sverre
*** Break *** floating point exception
===========================================================
There was a crash (#7 0xb71bee3d in SigHandler(ESignals) ()).
This is the entire stack trace of all threads:
===========================================================
#0 0xb76ed424 in __kernel_vsyscall ()
#1 0xb6580003 in __waitpid_nocancel ()
at ../sysdeps/unix/syscall-template.S:82
#2 0xb6521e63 in do_system (line=<value optimized out>)
at ../sysdeps/posix/system.c:149
#3 0xb663d3bd in system (
line=0x30d42650 " /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/etc/gdb-backtrace.sh 12515 1>&2")
at pt-system.c:29
#4 0xb71b933d in TUnixSystem::Exec(char const*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#5 0xb71bf91a in TUnixSystem::StackTrace() ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#6 0xb71bed2f in TUnixSystem::DispatchSignals(ESignals) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#7 0xb71bee3d in SigHandler(ESignals) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#8 0xb71b5ee2 in sighandler(int) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#9 <signal handler called>
#10 0xb0b8ce9d in FairGeanePro::Propagate (this=0x30d44cc8, TParam=0x30d44a38,
TEnd=0x30d44f70, PDG=-211)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ geane/FairGeanePro.cxx:143
#11 0xaffdeb1f in PndPidCorrelator::GetTrackInfo (this=0x9e56b70,
track=0x2c38ba38, pidCand=0x30979d10)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidTrackInfo.cxx:47
#12 0xaffd46c1 in PndPidCorrelator::ConstructChargedCandidate (this=0x9e56b70)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidCorrelator.cxx:594
#13 0xaffd411f in PndPidCorrelator::Exec (this=0x9e56b70, option=0xb3671540 "")
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidCorrelator.cxx:538
#14 0xb713fe78 in TTask::ExecuteTasks(char const*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#15 0xb713f15e in TTask::ExecuteTask(char const*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#16 0xb35ba9d4 in FairRunAna::Run (this=0x944baa8, Ev_start=0, Ev_end=1000)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ base/FairRunAna.cxx:353
#17 0xb361602d in G__FairDict_894_0_5 (result7=0xbfa0b6b8,
funcname=0x9c1aa58 "", libp=0xbfa01074, hash=0)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ build/base/FairDict.cxx:13775
#18 0xb6a2ae97 in Cint::G__ExceptionWrapper(int (*)(G__value*, char const*, G__param*, int), G__value*, char*, G__param*, int) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#19 0xb6ad9c8f in G__execute_call ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#20 0xb6adab2a in G__call_cppfunc ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#21 0xb6ab51a5 in G__interpret_func ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#22 0xb6aa267d in G__getfunction ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#23 0xb6b9e004 in G__getstructmem(int, G__FastAllocString&, char*, int, char*, int*, G__var_array*, int) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#24 0xb6b93d09 in G__getvariable ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#25 0xb6a7b618 in G__getitem ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#26 0xb6a81c17 in G__getexpr ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#27 0xb6b09d74 in G__exec_statement ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#28 0xb6a670cd in G__exec_tempfile_core ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#29 0xb6a673bb in G__exec_tempfile ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#30 0xb6b1e124 in G__process_cmd ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#31 0xb717adcb in TCint::ProcessLine(char const*, TInterpreter::EErrorCode*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#32 0xb717a911 in TCint::ProcessLineSynch(char const*, TInterpreter::EErrorCode*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#33 0xb70c9e8a in TApplication::ExecuteFile(char const*, int*, bool) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#34 0xb70ca2dc in TApplication::ProcessFile(char const*, int*, bool) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#35 0xb70c777f in TApplication::ProcessLine(char const*, bool, int*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#36 0xb67bd821 in TRint::Run(bool) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libRint.so
#37 0x08048eaf in main ()
#38 0xb64ffc76 in __libc_start_main (main=0x8048e40 <main>, argc=7,
ubp_av=0xbfa14a64, init=0x8049040 <__libc_csu_init>,
fini=0x8049030 <__libc_csu_fini>, rtld_fini=0xb76fc040 <_dl_fini>,
stack_end=0xbfa14a5c) at libc-start.c:228
#39 0x08048d71 in _start ()
===========================================================
The lines below might hint at the cause of the crash.
If they do not help you then please submit a bug report at
http://root.cern.ch/bugs. Please post the ENTIRE stack trace
from above as an attachment in addition to anything else
that might help us fixing this issue.
===========================================================
#10 0xb0b8ce9d in FairGeanePro::Propagate (this=0x30d44cc8, TParam=0x30d44a38,
TEnd=0x30d44f70, PDG=-211)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ geane/FairGeanePro.cxx:143
#11 0xaffdeb1f in PndPidCorrelator::GetTrackInfo (this=0x9e56b70,
track=0x2c38ba38, pidCand=0x30979d10)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidTrackInfo.cxx:47
#12 0xaffd46c1 in PndPidCorrelator::ConstructChargedCandidate (this=0x9e56b70)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidCorrelator.cxx:594
#13 0xaffd411f in PndPidCorrelator::Exec (this=0x9e56b70, option=0xb3671540 "")
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidCorrelator.cxx:538
#14 0xb713fe78 in TTask::ExecuteTasks(char const*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#15 0xb713f15e in TTask::ExecuteTask(char const*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#16 0xb35ba9d4 in FairRunAna::Run (this=0x944baa8, Ev_start=0, Ev_end=1000)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ base/FairRunAna.cxx:353
===========================================================
|
|
|
|
|
|
|
|
|
|
| Re: TpcRiemannTrackingTask - ideal PID now working - please rerun reconstruction [message #12426 is a reply to message #12424] |
Tue, 02 August 2011 15:25 |
Sverre Dørheim
Messages: 23
Registered: October 2008
Location: Munich
|
occasional visitor |
From: *natpool.mwn.de
|
|
Hi Lia
I implemented the printout in the PndPidTrackInfo.cxx:
helix->Print();
Bool_t rc = fPro0->Propagate(helix, fRes, fPidHyp*charge);
Here is the print out from the last track before the crash. The elements in the Covariance matrix seems very small.
0x2a09cd08
Position : (-1.9e+03, 6.5e+02, 1.5e+02)
Angles : Lambda = 0.018, Phi = -0.34
q/p = 1.2
fCovMatrix[0] = 0x2a09cd08 -1.2e+58
fCovMatrix[1] = 0x2a09cd08 6.3e+55
fCovMatrix[2] = 0x2a09cd08 1.7e+57
fCovMatrix[3] = 0x2a09cd08 -1.7e+60
fCovMatrix[4] = 0x2a09cd08 -6.1e+57
fCovMatrix[5] = 0x2a09cd08 -1.9e+53
fCovMatrix[6] = 0x2a09cd08 -3.3e+54
fCovMatrix[7] = 0x2a09cd08 5.9e+57
fCovMatrix[8] = 0x2a09cd08 2.7e+55
fCovMatrix[9] = 0x2a09cd08 -1.6e+56
fCovMatrix[10] = 0x2a09cd08 1.4e+59
fCovMatrix[11] = 0x2a09cd08 -2.1e+57
fCovMatrix[12] = 0x2a09cd08 -1.3e+62
fCovMatrix[13] = 0x2a09cd08 -2.1e+59
fCovMatrix[14] = 0x2a09cd08 -6.5e+57
*** Break *** floating point exception
===========================================================
There was a crash (#7 0xb724ce3d in SigHandler(ESignals) ()).
This is the entire stack trace of all threads:
===========================================================
#0 0xb777b424 in __kernel_vsyscall ()
#1 0xb660e003 in __waitpid_nocancel ()
at ../sysdeps/unix/syscall-template.S:82
#2 0xb65afe63 in do_system (line=<value optimized out>)
at ../sysdeps/posix/system.c:149
#3 0xb66cb3bd in system (
line=0x28dc7f28 " /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/etc/gdb-backtrace.sh 31010 1>&2")
at pt-system.c:29
#4 0xb724733d in TUnixSystem::Exec(char const*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#5 0xb724d91a in TUnixSystem::StackTrace() ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#6 0xb724cd2f in TUnixSystem::DispatchSignals(ESignals) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#7 0xb724ce3d in SigHandler(ESignals) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#8 0xb7243ee2 in sighandler(int) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#9 <signal handler called>
#10 0xb0c1ae9d in FairGeanePro::Propagate (this=0x2a4c7d18, TParam=0x2a09cd08,
TEnd=0x2a4c7fc0, PDG=211)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ geane/FairGeanePro.cxx:143
#11 0xb006cb33 in PndPidCorrelator::GetTrackInfo (this=0x9755bb0,
track=0x287db218, pidCand=0x2b6112c0)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidTrackInfo.cxx:47
#12 0xb00626c1 in PndPidCorrelator::ConstructChargedCandidate (this=0x9755bb0)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidCorrelator.cxx:594
#13 0xb006211f in PndPidCorrelator::Exec (this=0x9755bb0, option=0xb36ff540 "")
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidCorrelator.cxx:538
#14 0xb71cde78 in TTask::ExecuteTasks(char const*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#15 0xb71cd15e in TTask::ExecuteTask(char const*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#16 0xb36489d4 in FairRunAna::Run (this=0x8d4aaa8, Ev_start=0, Ev_end=1000)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ base/FairRunAna.cxx:353
#17 0xb36a402d in G__FairDict_894_0_5 (result7=0xbfa4ce78,
funcname=0x9519a88 "", libp=0xbfa42834, hash=0)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ build/base/FairDict.cxx:13775
#18 0xb6ab8e97 in Cint::G__ExceptionWrapper(int (*)(G__value*, char const*, G__param*, int), G__value*, char*, G__param*, int) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#19 0xb6b67c8f in G__execute_call ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#20 0xb6b68b2a in G__call_cppfunc ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#21 0xb6b431a5 in G__interpret_func ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#22 0xb6b3067d in G__getfunction ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#23 0xb6c2c004 in G__getstructmem(int, G__FastAllocString&, char*, int, char*, int*, G__var_array*, int) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#24 0xb6c21d09 in G__getvariable ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#25 0xb6b09618 in G__getitem ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#26 0xb6b0fc17 in G__getexpr ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#27 0xb6b97d74 in G__exec_statement ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#28 0xb6af50cd in G__exec_tempfile_core ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#29 0xb6af53bb in G__exec_tempfile ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#30 0xb6bac124 in G__process_cmd ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCint.so
#31 0xb7208dcb in TCint::ProcessLine(char const*, TInterpreter::EErrorCode*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#32 0xb7208911 in TCint::ProcessLineSynch(char const*, TInterpreter::EErrorCode*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#33 0xb7157e8a in TApplication::ExecuteFile(char const*, int*, bool) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#34 0xb71582dc in TApplication::ProcessFile(char const*, int*, bool) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#35 0xb715577f in TApplication::ProcessLine(char const*, bool, int*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#36 0xb684b821 in TRint::Run(bool) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libRint.so
#37 0x08048eaf in main ()
#38 0xb658dc76 in __libc_start_main (main=0x8048e40 <main>, argc=7,
ubp_av=0xbfa56224, init=0x8049040 <__libc_csu_init>,
fini=0x8049030 <__libc_csu_fini>, rtld_fini=0xb778a040 <_dl_fini>,
stack_end=0xbfa5621c) at libc-start.c:228
#39 0x08048d71 in _start ()
===========================================================
The lines below might hint at the cause of the crash.
If they do not help you then please submit a bug report at
http://root.cern.ch/bugs. Please post the ENTIRE stack trace
from above as an attachment in addition to anything else
that might help us fixing this issue.
===========================================================
#10 0xb0c1ae9d in FairGeanePro::Propagate (this=0x2a4c7d18, TParam=0x2a09cd08,
TEnd=0x2a4c7fc0, PDG=211)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ geane/FairGeanePro.cxx:143
#11 0xb006cb33 in PndPidCorrelator::GetTrackInfo (this=0x9755bb0,
track=0x287db218, pidCand=0x2b6112c0)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidTrackInfo.cxx:47
#12 0xb00626c1 in PndPidCorrelator::ConstructChargedCandidate (this=0x9755bb0)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidCorrelator.cxx:594
#13 0xb006211f in PndPidCorrelator::Exec (this=0x9755bb0, option=0xb36ff540 "")
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ pid/PidCorr/PndPidCorrelator.cxx:538
#14 0xb71cde78 in TTask::ExecuteTasks(char const*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#15 0xb71cd15e in TTask::ExecuteTask(char const*) ()
from /nfs/hicran/project/panda/SIM/FAIRRoot/fairsoft_release_may11/tools/root _5.28d_qt_custom_TH2Poly/lib/libCore.so
#16 0xb36489d4 in FairRunAna::Run (this=0x8d4aaa8, Ev_start=0, Ev_end=1000)
at /nfs/hicran/project/panda/SIM/sdorheim/Programming/pandaROOT/cleanTrunk/ base/FairRunAna.cxx:353
===========================================================
I hope it helps
|
|
|
|
|
|
|
|
|
|
|
|
| Re: TpcRiemannTrackingTask - ideal PID now working - please rerun reconstruction [message #12440 is a reply to message #12433] |
Tue, 02 August 2011 20:49 |
Sverre Dørheim
Messages: 23
Registered: October 2008
Location: Munich
|
occasional visitor |
From: *natpool.mwn.de
|
|
Hello Stefano, Lia
To study the problem a bit closer I took a look at the output of the fits in the TPC+MVD+GEM before the conversion to PndTracks.

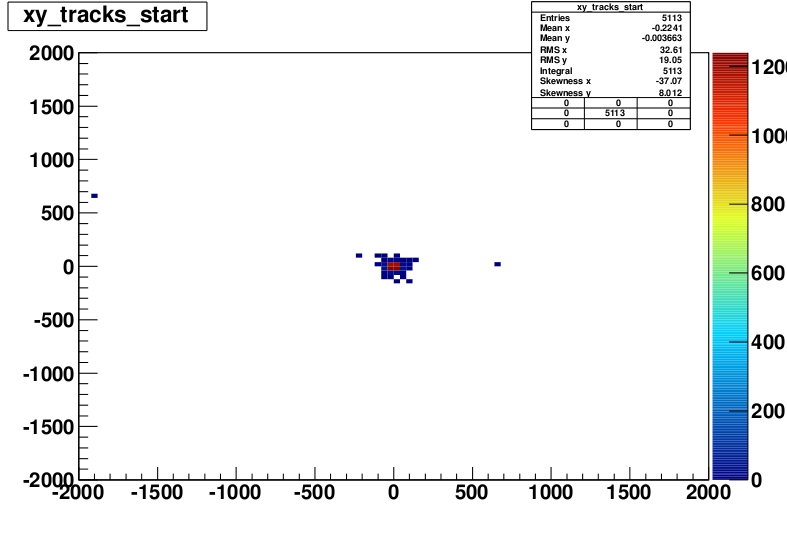

In this plot one can see the start-position of all tracks in the XY-plane, and one can clearly see some starting points which are way off. This is of course ALL tracks, also the tracks where the fits went wrong.

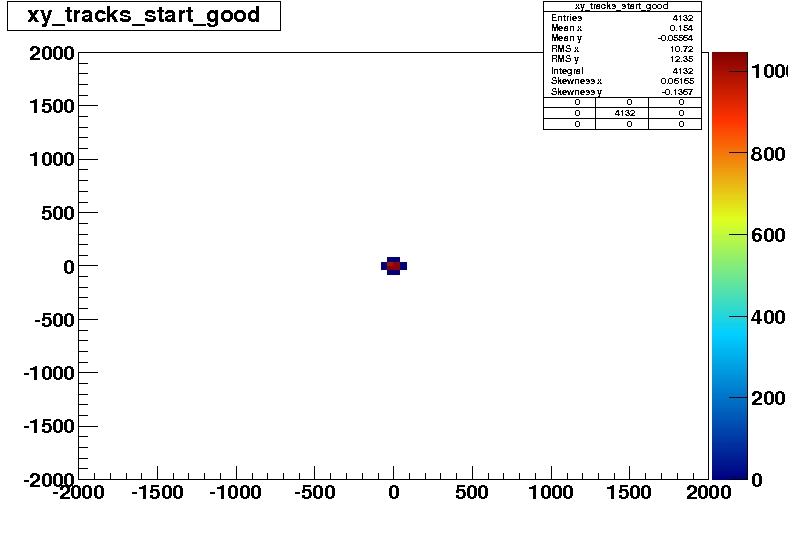

Looking at only the tracks with
track.getCardinalRep().getStatusFlag()==0, where the fit converged I get something like this, where all start values are within a reasonable range.
The rough binning is to make the outlyers a bit more visible.
This led me to investigate if this flag is checked at any time later in the analysis chain and as far as I can see this information is lost when converting the GFTrack to a PndTrack, where the PndTrack gets a new flag which is:
-1 if NDF=0 or Genfit threw an exeption when calculated the momentum at the first and last detector plane
1 otherwhise
I did the same plot for all GFTracks where NDF!=0 resulting in:
Where clearly can see that the worst outliers are gone.
Since only this flag is awailable atthe PndPidTrackInfo level I implemented this check before the extrapolation:
Bool_t rc=false;
if(track->GetFlag()==1){
rc = fPro0->Propagate(helix, fRes, fPidHyp*charge);
}
This was then tested on 1000 events, whith no crash in the PID-macr. This is probably the quickest fix as one only needs to rerun the PID-Macro.
Best regards
Sverre
Ps:
Looking at the statistics in the 3 plots:
All GFTracks:5113
statusflag 0:4132
ndf!=0 :4912
A lot more tracks get lost when cutting away events with statusflag!=0(ie something whent wrong) than just cutting away events with ndf!=0.
The effect of this should also be tested.
|
|
|
|
Goto Forum:
Current Time: Wed Nov 27 22:56:41 CET 2024
Total time taken to generate the page: 0.00894 seconds
|
GSI Forum
Search
Help
Members
Login
Home
