Re: Group velocity for Cherenkov photon propagation in G3/G4 [message #11475 is a reply to message #11457]

Fri, 28 January 2011 19:14

Jochen Schwiening
Messages: 86
Registered: June 2009
Location: GSI, Darmstadt

continuous participant

From: *gsi.de

Hi Oliver,

thanks for the check.
Are you plotting the average velocity per wavelength bin or the
velocity for each photon? In the events that I looked at the
velocity is almost correct on average but there is a huge spread.

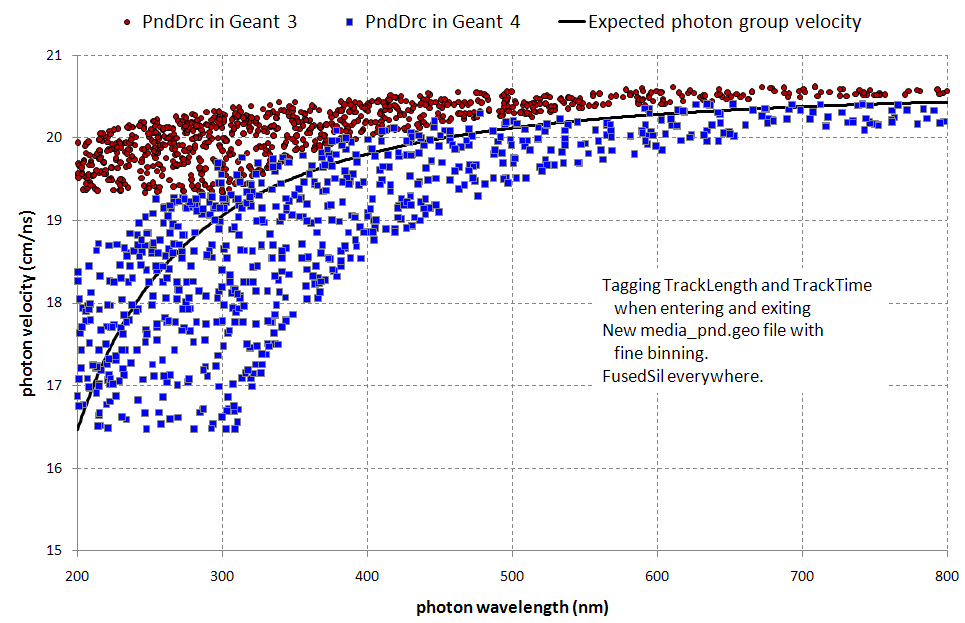

Would it be possible for you to plot the velocity per photon
vs. the photon wavelength from your sample, similar to the
scatter plots I have?
I checked the material properties table for FusedSil in the
current official media_pnd.geo and it looks OK. The binning
could be finer and I applied a table with the equivalent of
the 1nm binning you recommended. The spread of v_group for a
given wavelength remains the same, as you can see in the
attached plot for the finely binned FusedSil.

Cheers,
Jochen

index.php?t=getfile&id=6300&private=0

Attachment: pandaroot_geant_v_vs_lambda_new_files.png
(Size: 63.32KB, Downloaded 1230 times)
