[ERRATA] STT plots from last collaboration meeeting [message #10878]

Tue, 20 July 2010 09:25

StefanoSpataro
Messages: 2736
Registered: June 2005
Location: Torino

first-grade participant

From: *to.infn.it

Dear all,
Lia has found that the stt geometry in the standard macro/pid folder was the short one, even if the gem planes were only three. This means that the STT plots I have showed in Stockholm were affected by a "hole" around 20°.

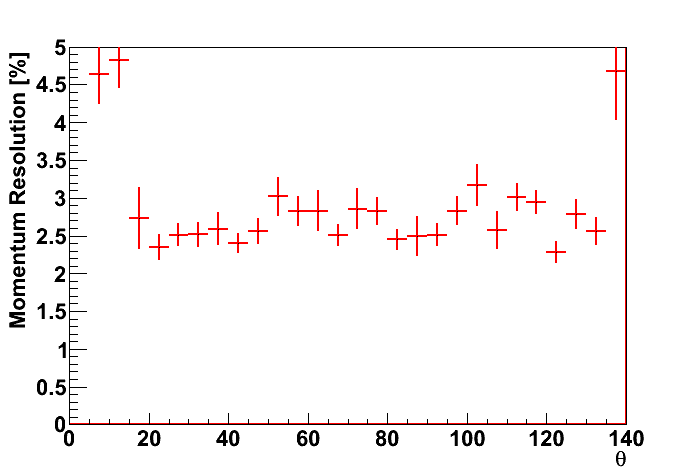

I have corrected the macro in svn, I attach here the theta-dependent resolution after the fix, using the long geometry. If you compare it with my old plot, you can see that the region were the resolution decreases starts at lower polar angles.

index.php?t=getfile&id=6039&private=0

Attachment: stt_res_mom_theta_rev.gif
(Size: 6.89KB, Downloaded 1106 times)
