Momentum resolution and reconstruction efficiency of LHE tracking [message #10162]

Wed, 10 February 2010 19:21

David Pohl
Messages: 18
Registered: October 2009
Location: FZ Juelich

occasional visitor

From: *ikp.kfa-juelich.de

Hi everybody,

at the moment I try to investigate the MVD particle identification capabilities. Therefore I study the Lhe track reconstruction efficiency and
the reconstructed momentum resolution for low momentum particles (p < 1 GeV/c). I found out that the reconstruction efficiency is much worse
than it was in the old BaBar framework (p. 47, Physics Performance Report). In order to compare the results I did a simulation with the
same parameters, which are:

- fixed theta = 60
- phi = 0..360
- transverse momentum pt = 0..1 GeV/c
- Lhe ideal track finder and Lhe Kalman track fitting
- 1 primary pions per event with box generator
- 5e3 events → ca. 230 values for one histogram entry
- standard macros in the tutorials/lhetrack/ folder for STT
- PandaRoot: revision 7731 and external packages: January 2010

The criterion for a successful track reconstruction is that the MC pt value is within the 3 sigma region of the reconstructed pt value.

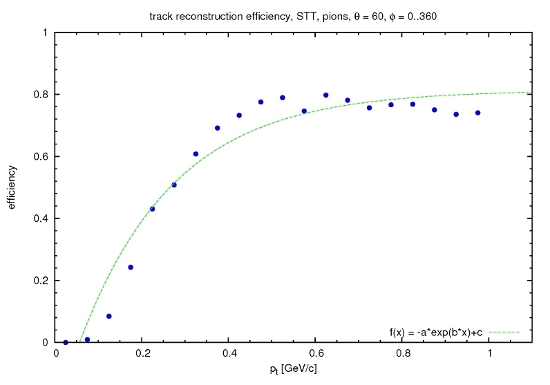

The following plots show the ratio between successfully reconstructed tracks divided by the total number of tracks as a function of the MC pt:

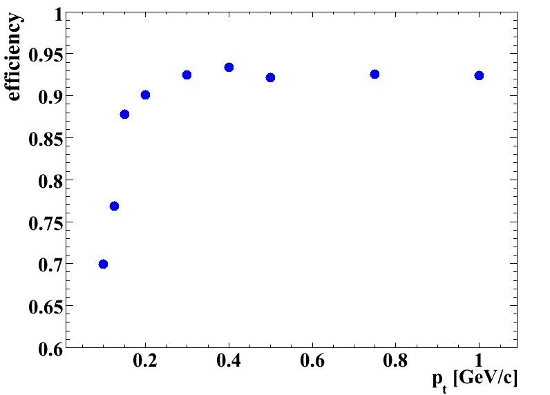

Physics Performance Report (first); Panda Root (second)
index.php?t=getfile&id=5834&private=0

The reconstruction efficiency, especially for low momentum particles, is much worse (200MeV/c: 40% instead of 90%).

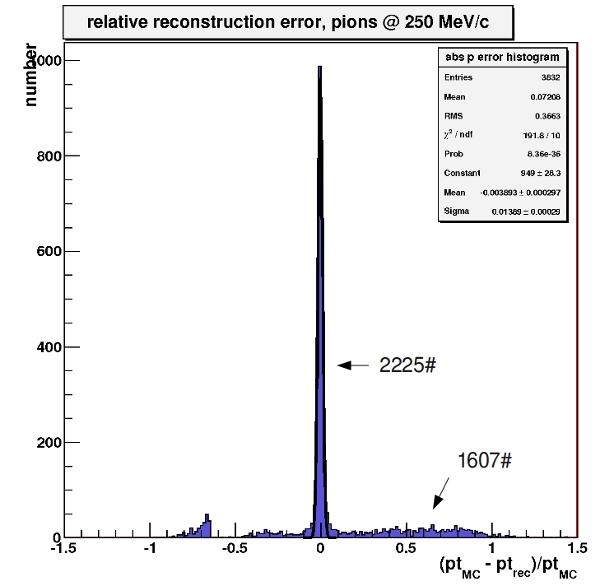

For the momentum error of the reconstructed track in comparison to the MC values I did a simulation with Pions@250 MeV/c:

index.php?t=getfile&id=5837&private=0

One can easily see that only under 60% of the entries are in the 3 sigma region of the Gauß Fit. Or the other way round that
the intended momentum resolution of a few percent can only be achieved for 60% of the events. I'm really lost at the moment
due to the fact that so many events cannot be used and the momentum resolution is that bad...
Has anybody any idea?

greetings,
David

Attachment: report.jpeg
(Size: 38.75KB, Downloaded 1039 times)
Attachment: trackefficiency.jpg
(Size: 38.74KB, Downloaded 1027 times)
Attachment: 250MeV2.jpg
(Size: 65.19KB, Downloaded 1060 times)

[Updated on: Wed, 10 February 2010 19:25]
